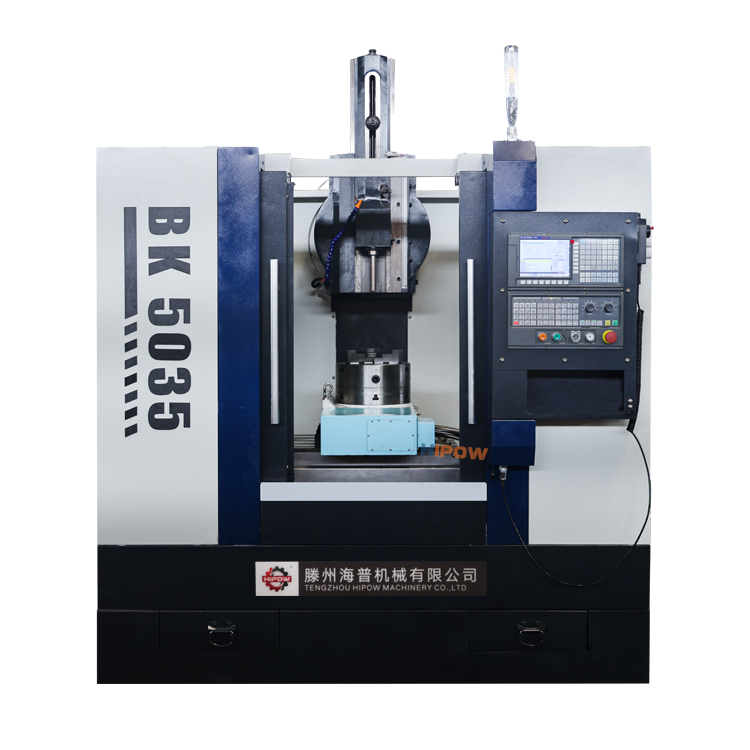

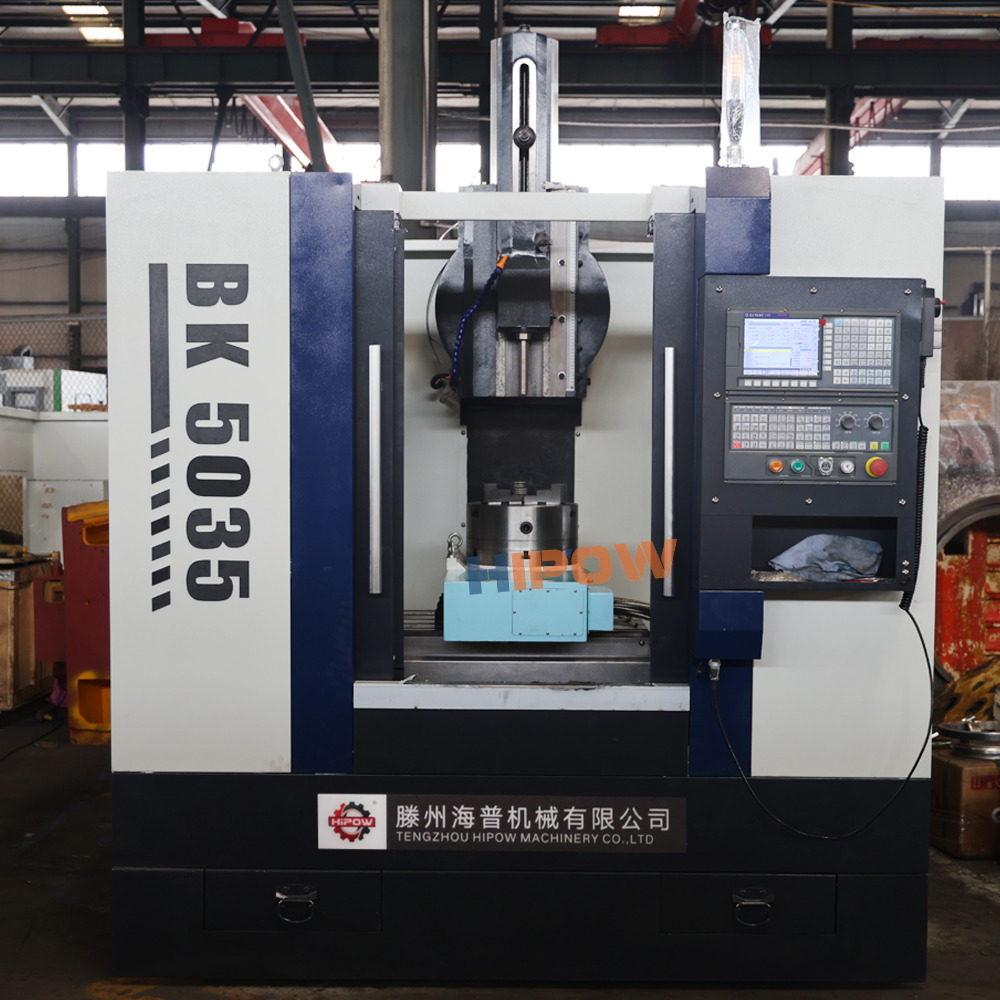

BK5035 CNC Slotting Machine
Item Number： HP-NC-0025
Machine Condition： NEW
Machine in stock： 1
Delivery time： 30-40 Days
Payment terms： T/T
Warranty： 1 Year
Afer Sales Service：
Product introduction

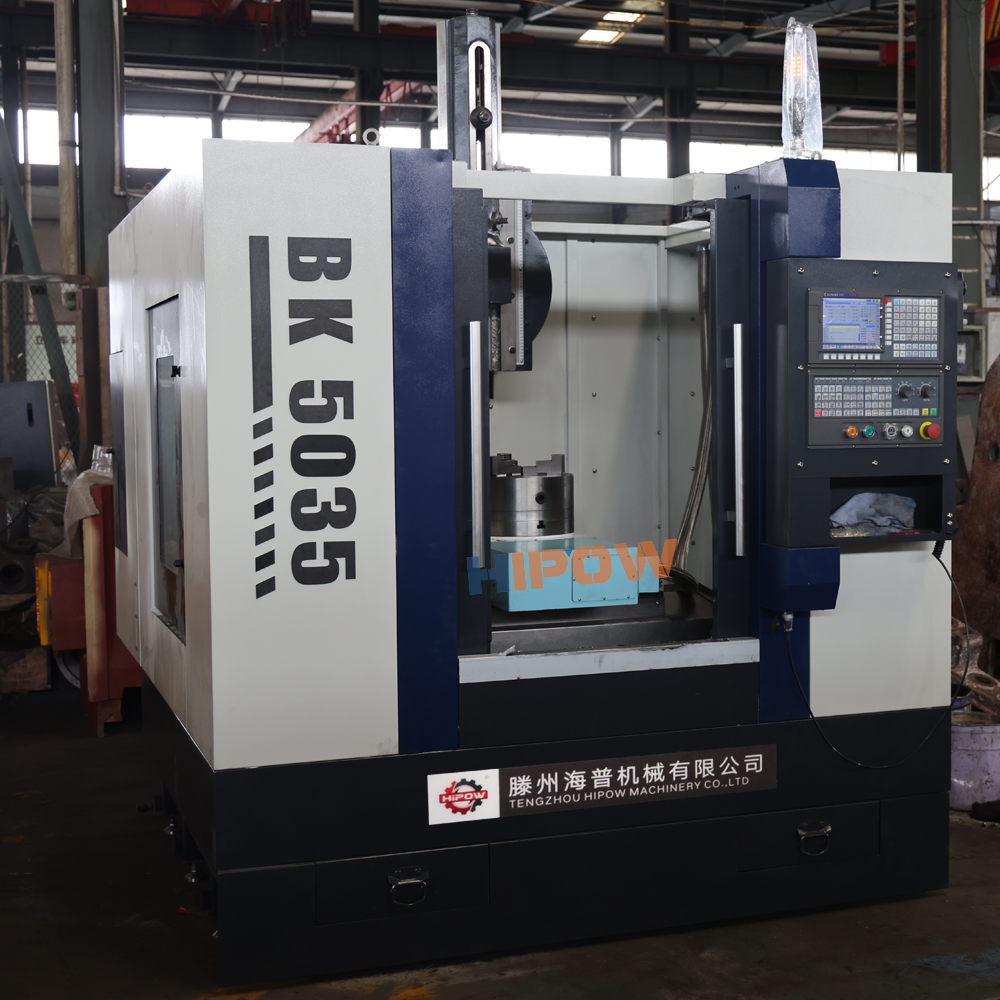

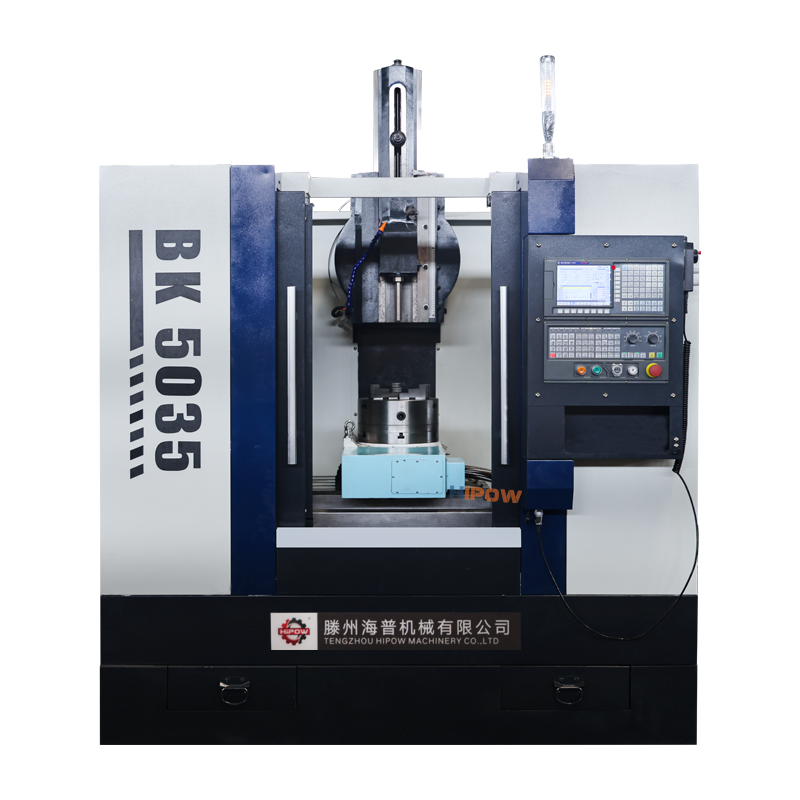

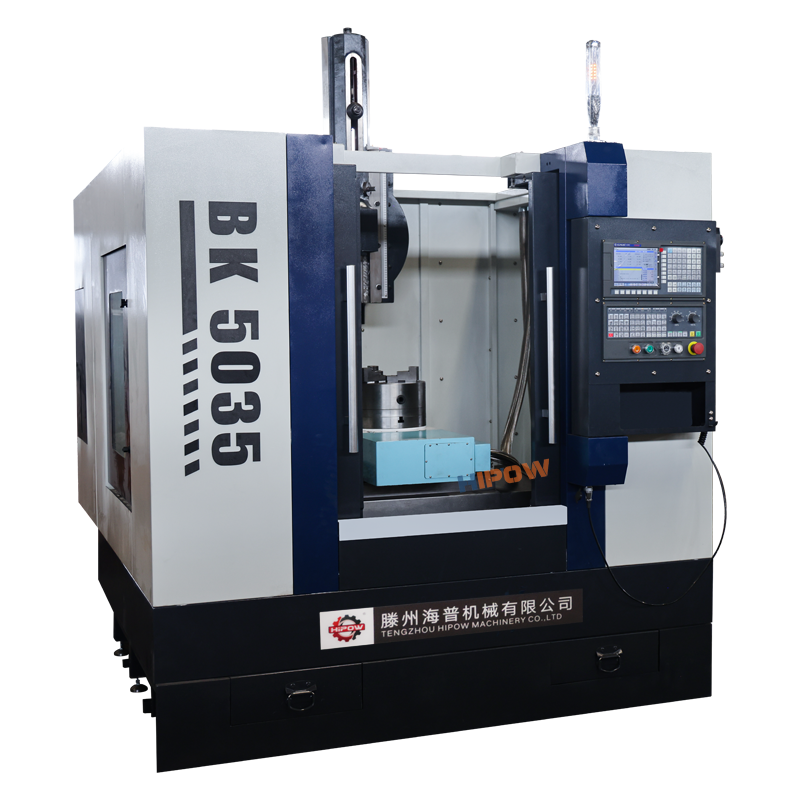

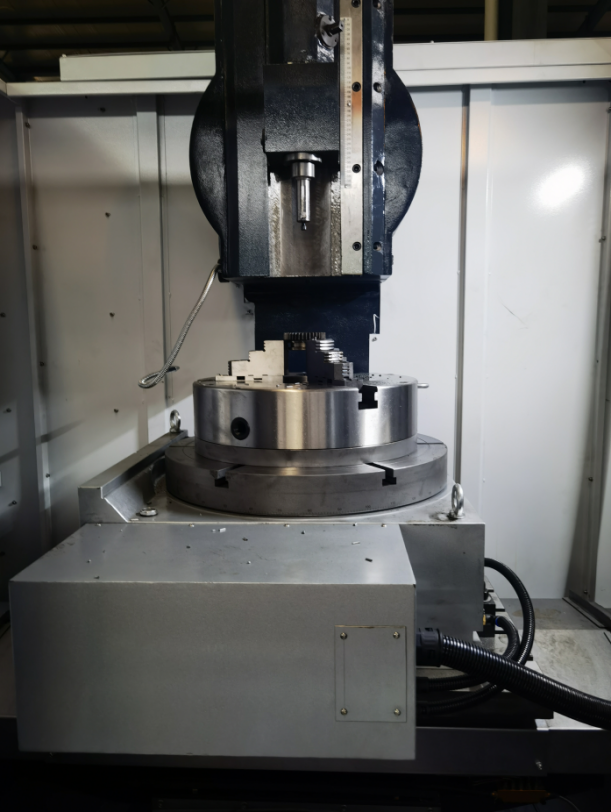

BK5035 CNC Slotting Machine
Main Feature
1.It has high power, strong cutting force, good rigidity, and can be widely used in industries such as machine tools,
automotive manufacturing, various mechanical and electrical, and aerospace. It is an ideal equipment for processing
keyways of various materials.
2. The insertion bed is controlled by GSK/FANUC/Siemens CNC system. Equipped with an external handwheel.
3. The transmission method is synchronous belt transmission, which has low noise and high transmission power.
Specification | unit | BK5035 |
The maximum length of ram | mm | 350 |
Ram adjustment stroke | mm | 320 |
Number of ram movements | n/min | 0-70 |
working table size | mm | 750x500 |
Table travel (X, Y) | mm | 400x450 |
From axis of the tool bearing hole to the forearm of the column | mm | 625 |
From the end face of the cutter head support hole to the table | mm | 700 |
X direction motor torque | (N.M) | 10 |
Y direction motor torque | (N.M) | 15 |
Fast-moving | X (m/min) | 5 |
Y(m/min) | 5 | |
main motor power | KW | 5.5 |
Machine tool weight (about) | KG | 3800 |
Package dimensions | mm | 2600/2300/2500 |
Q1. How can l get a quotation?
A. Leave us massage with your purchase requements and we will reply
you ASAP. And you may contact us directly by Trade Manager or Telephone.
Q2. Can you provide customized machine or SPM (Special purposemachine)?
A. Yes, we provide smart CNC solutions for our customer, in order increase efficiency.
Q3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.
Q4. How about your price?
A. Send me details about what you need, you will get the best
price in China. The price is competitive over the world.
Q5.What's the delivery time, and what's the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines
packed with sea worthy package.
