CA6140X1000 Lathe
Item Number： HP-NC-260715
Machine Condition： NEW
Machine in stock： 1
Delivery time： 30-40 Days
Payment terms： T/T
Warranty： 1 Year
Afer Sales Service：
Product introduction

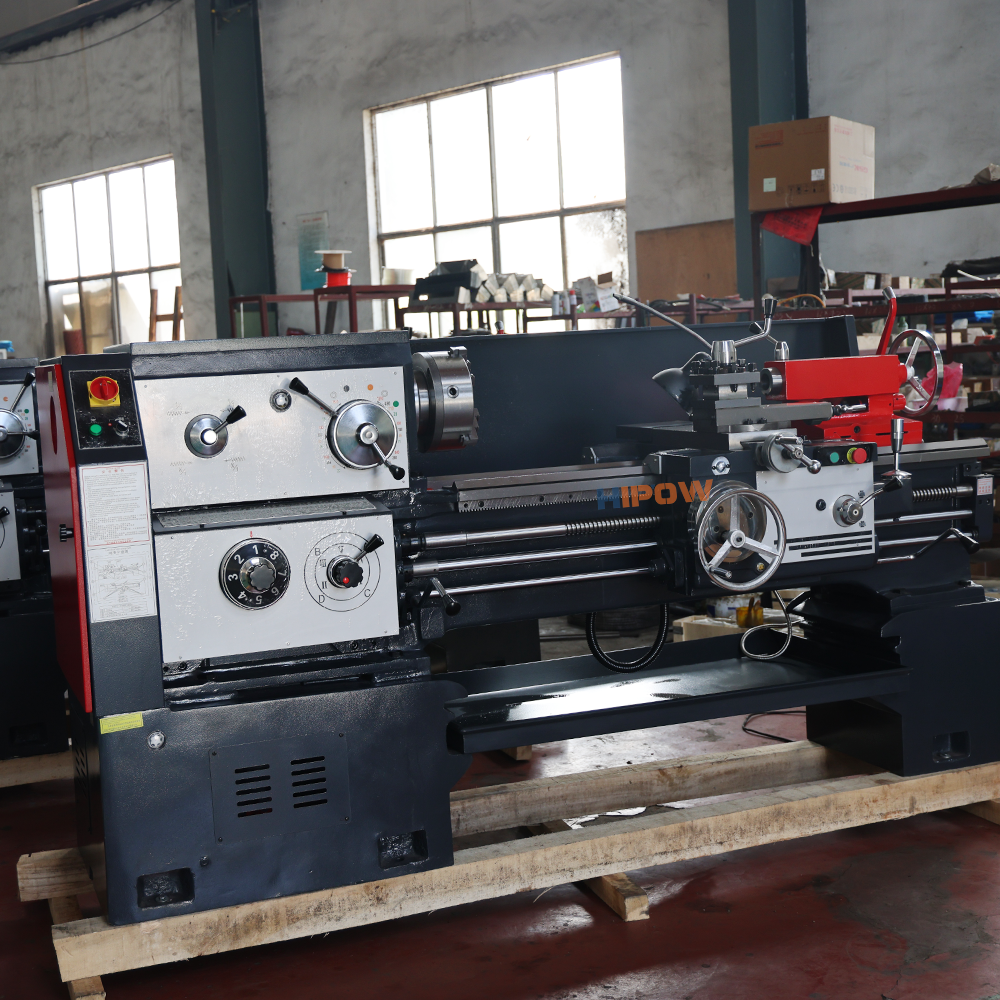

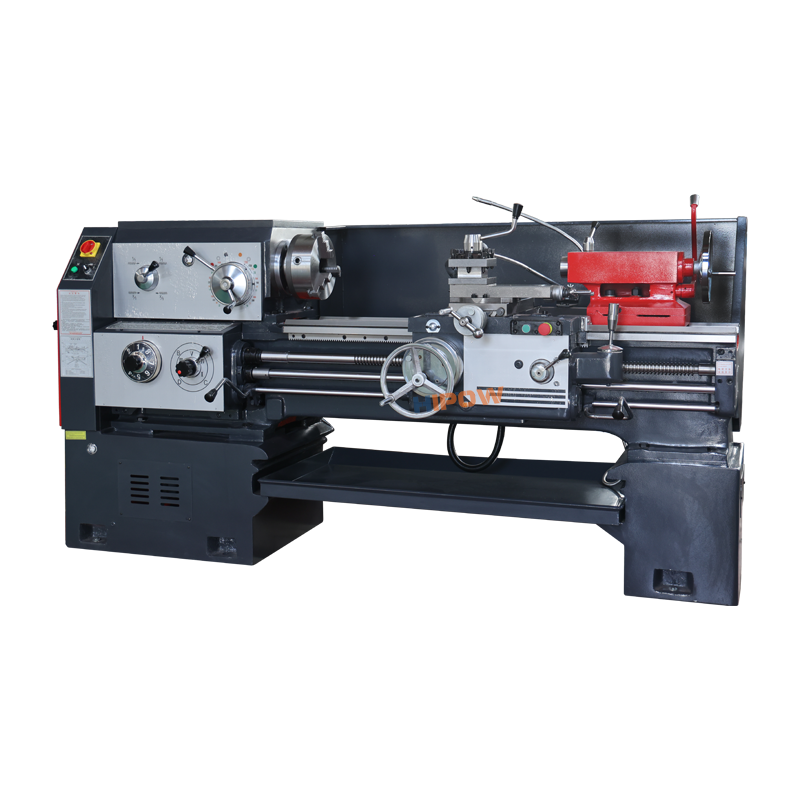

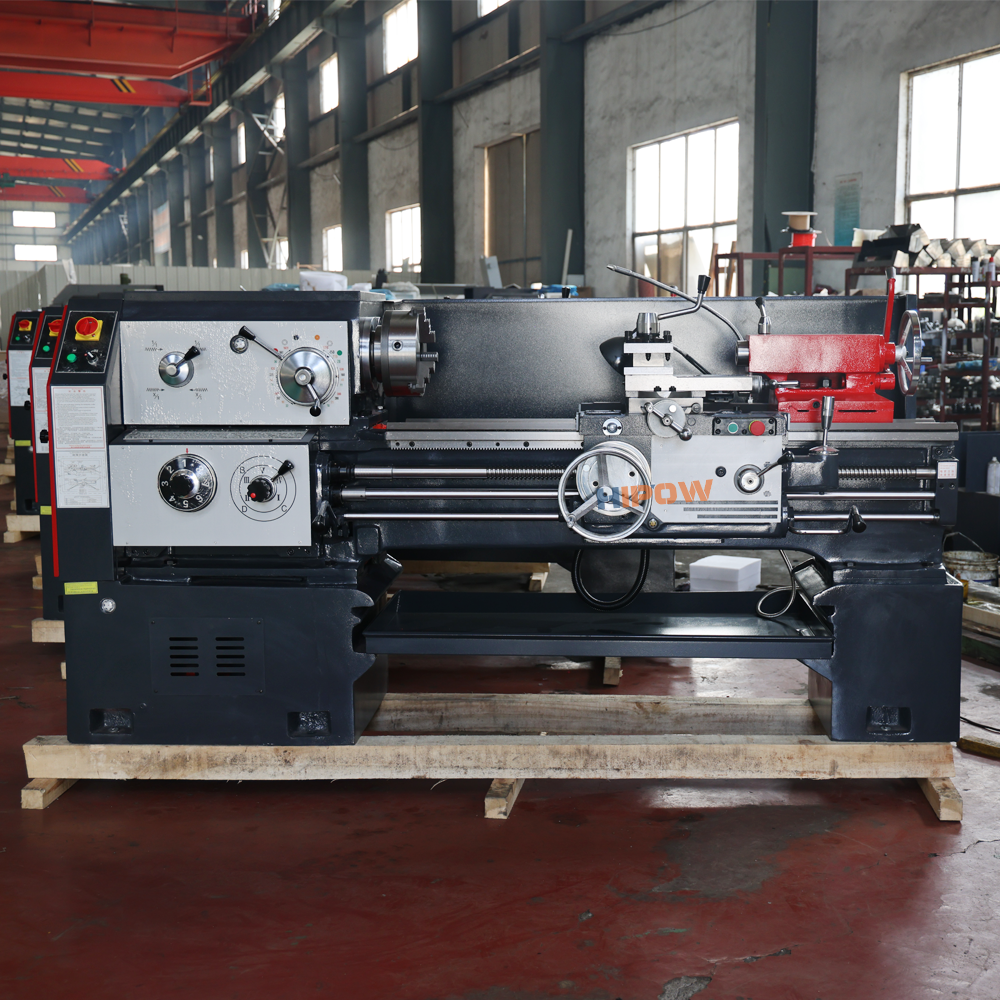

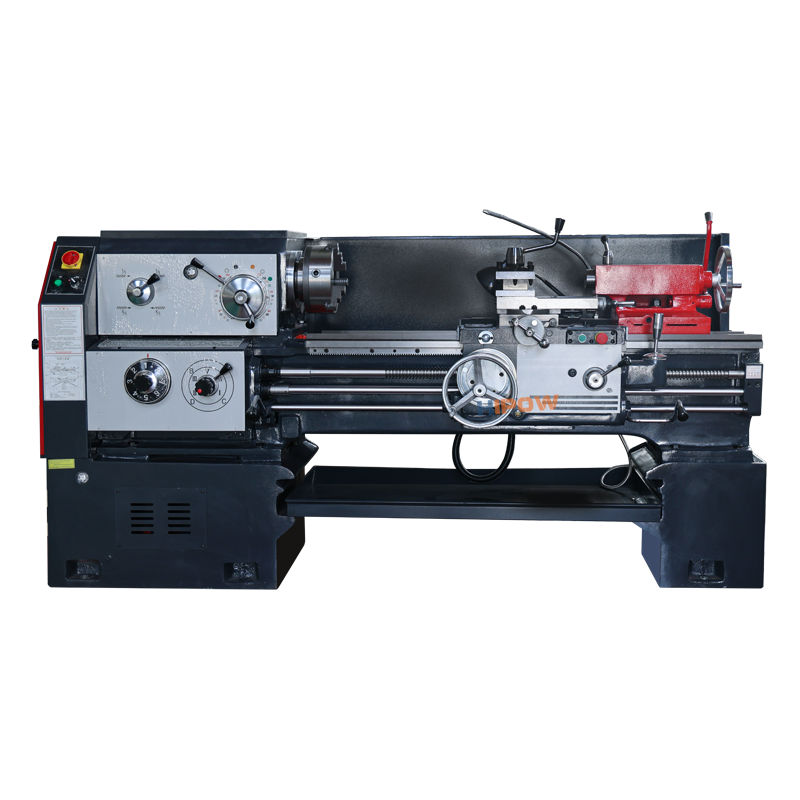

CA6140X1000 Lathe
Main Feature
1. Monoblock cast iron of the whole machine ensure high rigidity.Compact design
with HT300 high tension Meehanite cast-iron machine bed.
2.Adopt domestic famous ball screw and high-precision screw bearing.
Specifications | CA6140 | |
Max. Swing over bed | 400mm | |
Max. Swing over carriage | 210mm | |
Max. length of work piece | 750/1000/1500/2000/2200/3000/4000mm | |
Width of bed | 400mm | |
Section of turning tool | 25x25mm | |
Spindle | Spindle speeds | 10-1400rpm (24steps) |
Hole through spindle | 52mm. | |
Spindle taper | MT.6 | |
Feed | Number of feeds | 64 kinds(for each) |
Range of metric threads(kinds) | (1-192mm)44kinds | |
Range of inch threads(kinds) | (2-24tpi)21kinds | |
Range of module threads(kinds) | 0.25-48 (Moduie39kinds) | |
Range of pitch threads(kinds) | 1-96DP(37kinds) | |
Tailstock | Max. tail stock spindle travel | 150mm |
Tail stock spindle diameter | 75mm | |
Taper of tail stock spindle center hole | MT5 | |
Main motor | 7.5KW(10HP) | |
Packing dimensions (L*W*Hmm) | Overall dimensions for750mm | 2550x1140x1750 |
Overall dimensions for1000mm | 2700x1140x1750 | |
Overall dimensions for1500mm | 3200x1140x1750 | |
Overall dimensions for2000mm | 3700x1140x1750 | |
Overall dimensions for2200mm | 4030x1140x1750 | |
Overall dimensions for3000mm | 4850x1140x1750 | |
Overall dimensions for4000mm | 5800x1140x1750 | |
Weight (kg) | Length | G.W N.W. |
Weight for 750mm | 2100 1990 | |
Weight for 1000mm | 2190 2070 | |
Weight for 1500mm | 2350 2220 | |
Weight for 2000mm | 2720 2570 | |
Weight for 2200mm | 2800 2600 | |
Weight for 3000mm | 3300 3200 | |
Weight for 4000mm | 3500 3400 | |

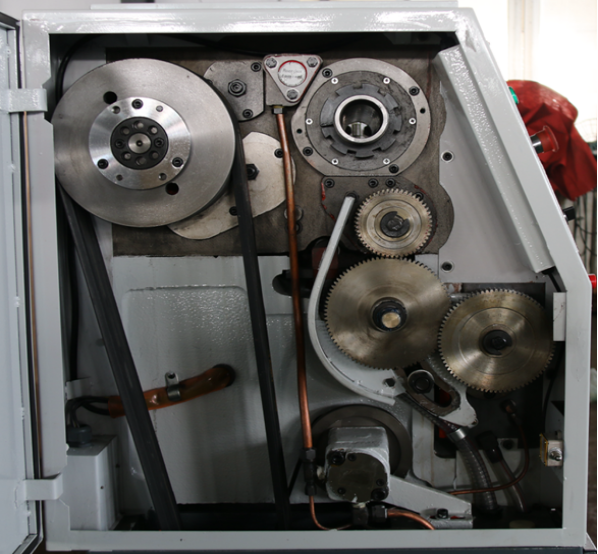

Spindle Head Box
Strictly Processed Hardened-tempered
Casting gears make the spindle head box perform precisely.

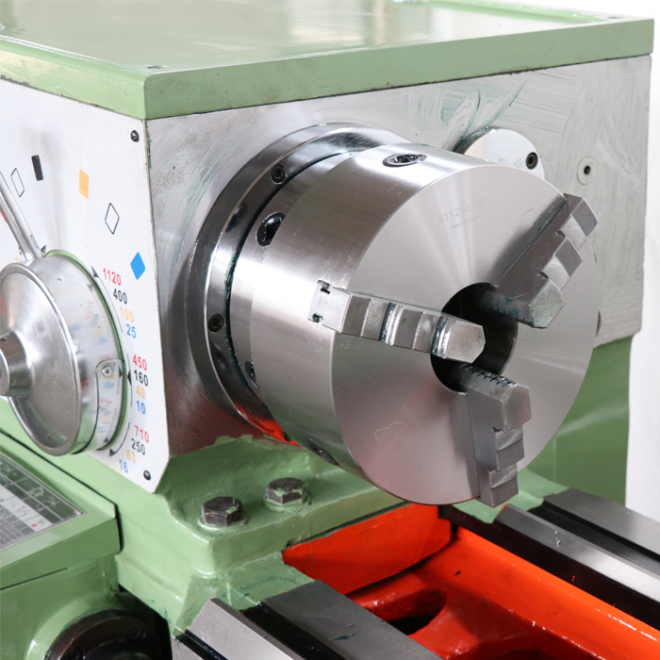

Spindle Hole
Spindle Hole：52mm
Spindle Taper:MT6

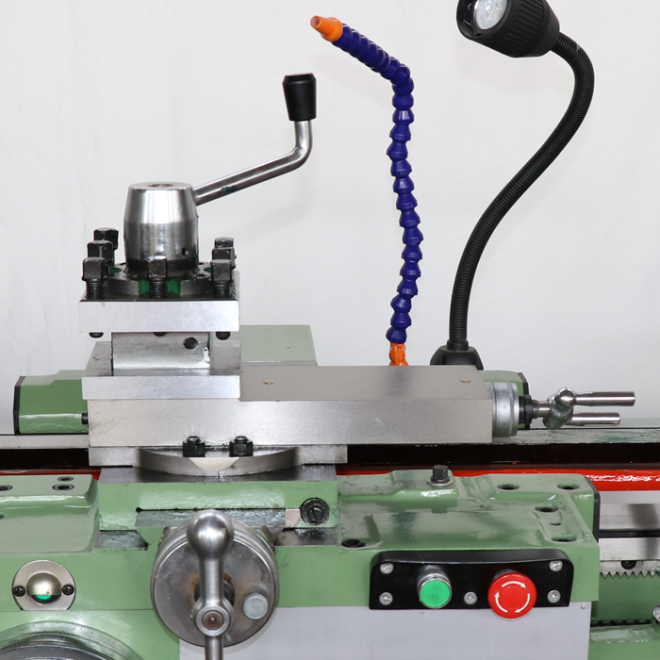

Tool Post and Steady Rest
The machine`s Tool Post size is 25x25mm ,
steady rest and follow rest are standard parts

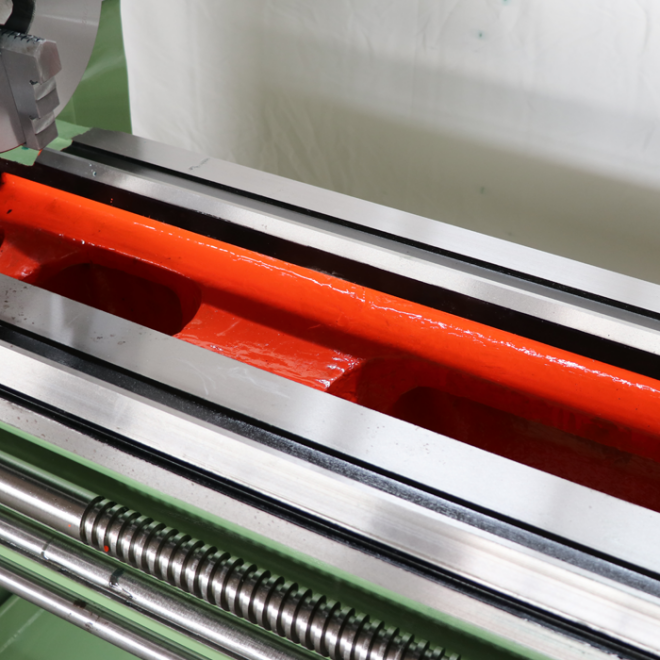

Lathe Body
The machine`s bed width is 400mm,
Hardened-tempered casting body makes high rigidity,high precision,long Life.

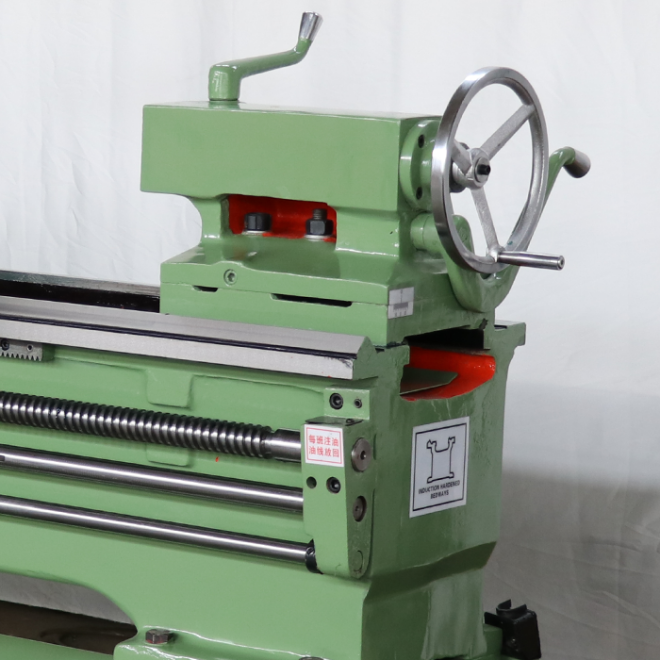

Tailstock
Tailstock`s sleeve diameter :75mm,Tailstock Taper: MT5.
Drilling Chuck can be installed .
Q1. How can l get a quotation?
A. Leave us massage with your purchase requements and we will reply
you ASAP. And you may contact us directly by Trade Manager or Telephone.
Q2. Can you provide customized machine or SPM (Special purposemachine)?
A. Yes, we provide smart CNC solutions for our customer, in order increase efficiency.
Q3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.
Q4. How about your price?
A. Send me details about what you need, you will get the best
price in China. The price is competitive over the world.
Q5.What's the delivery time, and what's the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines
packed with sea worthy package.
