M7132 Hydraulic Surface Grinder
Item Number： HP-SG-015
Machine Condition： NEW
Machine in stock： 1
Delivery time： 60 Days
Payment terms： T/T
Warranty： 1 Year
Afer Sales Service：
Product introduction

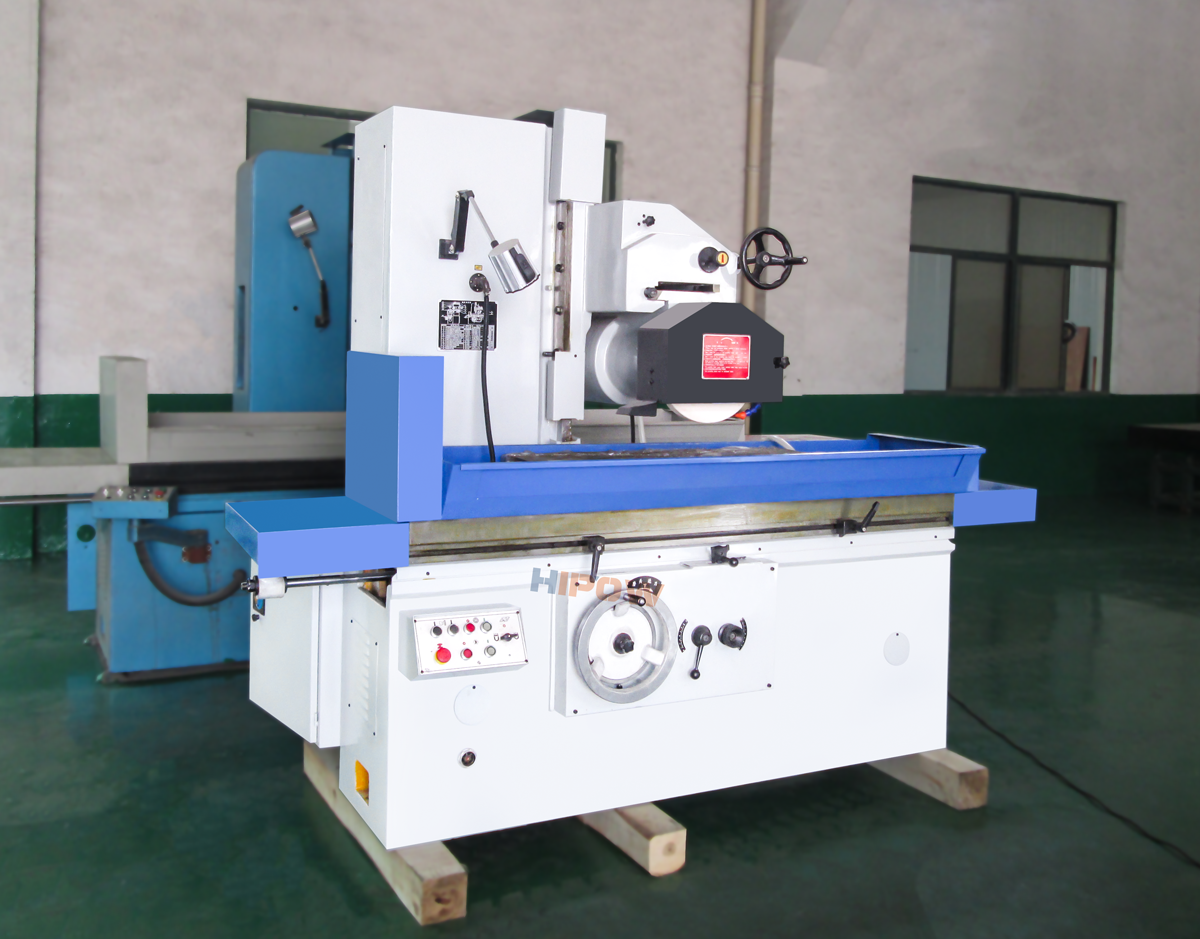

M7132 Hydraulic Surface Grinder
Main Feature
★The machines` casting bodys are made of special alloy steel through strict
processing and heat treatment technology. High precision and good rigidity.
★The table ball track is made of steel material, high-density steel balls, wear-
resistant, light moving, and high efficiency. The manual worktable is driven by a
synchronous belt with high stability.
★The front and rear double V-shaped slides, and precision shoveling, not only
slide smoothly and wear-resistant.
★The high-precision sleeve type grinding head adopts ultra-precision beveled
rolling bearings.Such a design ensures long life of the bearing and the surface
accuracy of the grinding.
Model | unit | M7132*1000 | M7132*1600 | M7132*2000 | ||
Working table | Table size(L×W) | mm | 1000×320 | 1600×320 | 2000×320 | |
Max movement of working table(L× W) | mm | 1100 | 1700 | 2100 | ||
T-Slot(number×width) | 3×18 | 3×18 | 3×18 | |||
Speed of working table | m/min | 3-25 | 3-25 | 3-25 | ||
Grinding head | Max distance from spindle center to table surface | mm | 570 | 570 | 570 | |
Max travel of grinding head Cross(Manual and hydraulic) | mm | 350 | 350 | 350 | ||
Max travel of grinding head Vertical(Manual) | mm | 400 | 400 | 400 | ||
Spindle speed | rpm | 1440 | 1440 | 1400 | ||
Wheel Size(Outer diameter×width×Inner diameter) | mm | Ф350x40x Ф127 | Ф350x40x Ф127 | Ф350x40x Ф127 | ||
Scale on the vertical handwheel | mm | 0.01 | 0.01 | 0.01 | ||
Grinding head feed per revolution of handwheel | mm | 1.00 | 1.00 | 1.00 | ||
Total power | kw | 11 | 12 | 12 | ||
Spindle motor | Power | kw | 7.5 | 7.5 | 7.5 | |
Speed | r/min | 1440 | 1440 | 1440 | ||
Rapid up and down motor | Power | kw | 0.37 | 0.37 | 0.55 | |
Speed | r/min | 1440 | 1440 | 1440 | ||
Oil pump motor | Power | kw | 3 | 4 | 4 | |
Speed | r/min | 960 | 960 | 960 | ||
Coolant pump motor | Power | kw | 0.125 | 0.125 | 0.125 | |
Speed | r/min | 2800 | 2800 | 2800 | ||
oil pump | Flow | L/min | 100 | 100 | 125 | |
Working pressure | Mpa | 1.5 | 1.5 | 1.5 | ||
Working precision | The parallelism of working surface to base level | mm | 1000:0.015 | 100:0.015 | 100:0.015 | |
Surface roughness | μm | Ra0.63 | Ra0.63 | Ra0.63 | ||
Weight | N/G | kg | 3700/4300 | 4300/4900 | 4830/5300 | |
Overall dimension(L×W×H) | mm | 2700×1700×2100 | 4400×1700×2100 | 5400×1700×2300 | ||
1000x320mm Electrical Magnetic Table
350*40*127mm GrinderWheel With 9Kw motor
7.5Kw Spindle Motor
Powerful Hydrualic Station
Coolant Pump Tankwith Magnetic Seperator
Electrical Travel Limited Swtich
Q1. How can l get a quotation?
A. Leave us massage with your purchase requements and we will reply
you ASAP. And you may contact us directly by Trade Manager or Telephone.
Q2. Can you provide customized machine or SPM (Special purposemachine)?
A. Yes, we provide smart CNC solutions for our customer, in order increase efficiency.
Q3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.
Q4. How about your price?
A. Send me details about what you need, you will get the best
price in China. The price is competitive over the world.
Q5.What's the delivery time, and what's the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines
packed with sea worthy package
