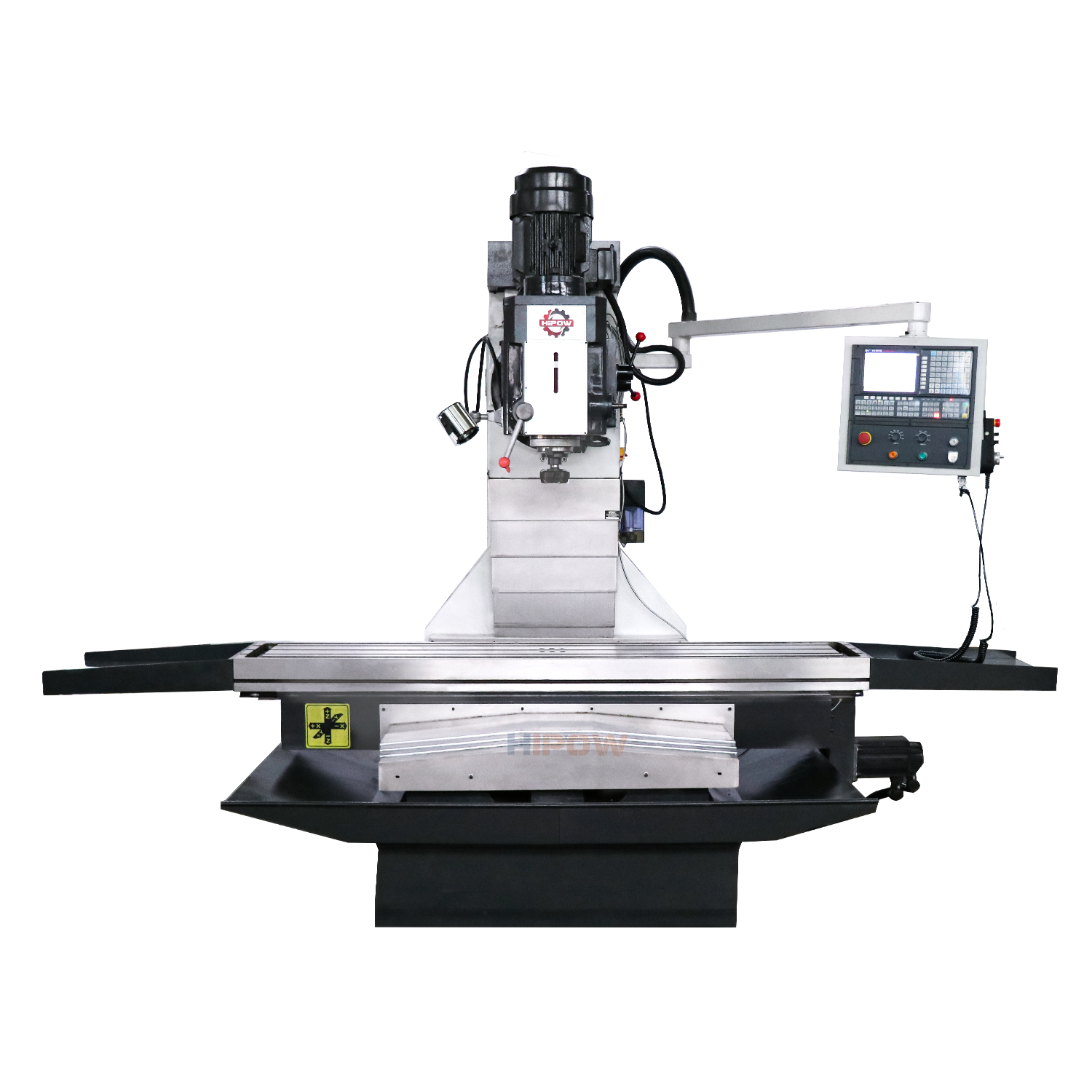

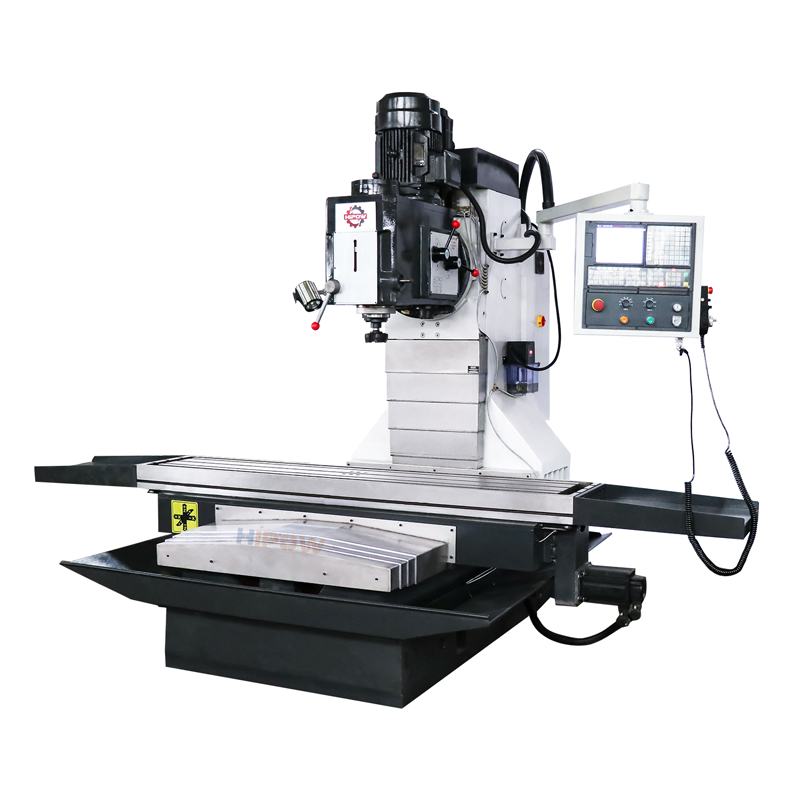

XK7180 CNC Milling Machine
Item Number： HP-NC-0048
Machine Condition： NEW
Machine in stock： Machine Frame
Delivery time： 35 Days
Payment terms： T/T
Warranty： 1 Year
Afer Sales Service： Free spare parts,Online Technical support
Product introduction

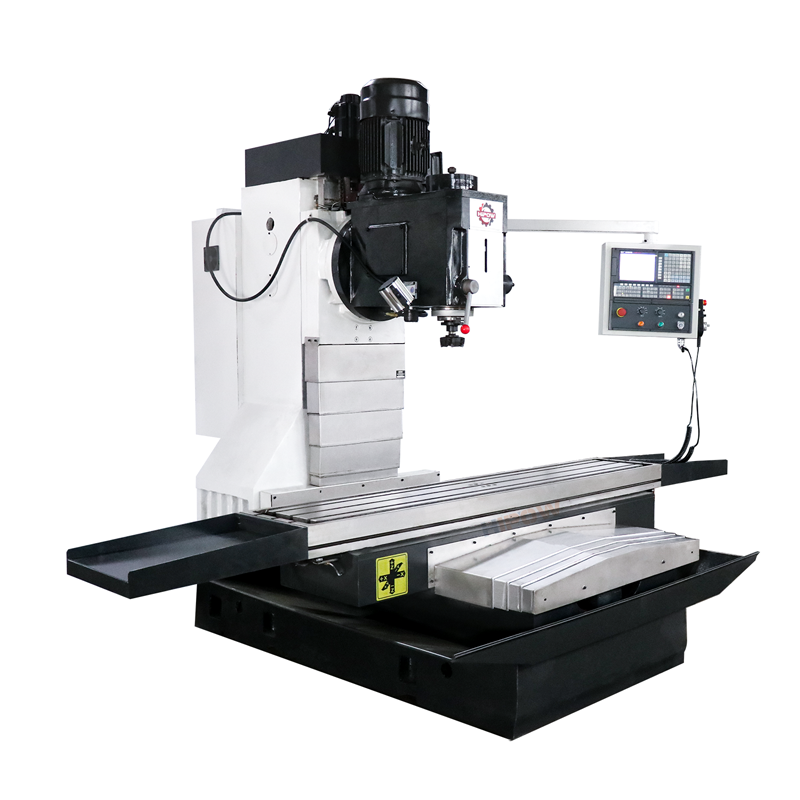

XK7180 CNC Milling Machine
Main Feature
1.Aseismatic capability, high strength and good quality cast iron.
2.Top reliable CNC controller: Fanuc ,Mitsubishi ,Siemens，
Syntech and GSK
3.Taiwan HlWN high precision linear rails, HIWIN ball screw
4. Taiwan brand,8K,10K,12k spindle unit
5.Taiwan OKADA umbrella/Arm type tool magazine
6.Japanese NSK bearing ,Germany R+W coupling
7. Japan HERG full automatic lubrication system
8.Taiwan pressure cylinder,and pneumatic system.
ltem | XK7180 |
Spindle Taper | IS0 50 |
Worktable Size(mm) | 2000x400 |
X/Y/Z Axis Travel (mm) | 1600/500/550 |
T-Slot (nunmber/width/distance)(mm) | 3/18/100 |
Swivel Angle of Headstock(°C) | ±30 |
Spindle to Worktable(mm) | 150---720 |
Spindle Center to Column Guideway (mm) | 580 |
Spindle Speed Range(r.p.m) | 108-1440 |
Spindel Sleeve Travel(mm) | 105 |
Worktable Cutting speed(mm/min) | 1-4000 |
X/Y/Z Axis Rapid speed(m/min) | 8/8/6 |
Main Motor(kw) | 11 |
Coolant Pump Motor(w) | 90 |
Overall Dimension(mm) | 2800×1860×2220 |
AC Power Input (V/HZ) | 380V/50HZ |
N.W | 6500Kg |

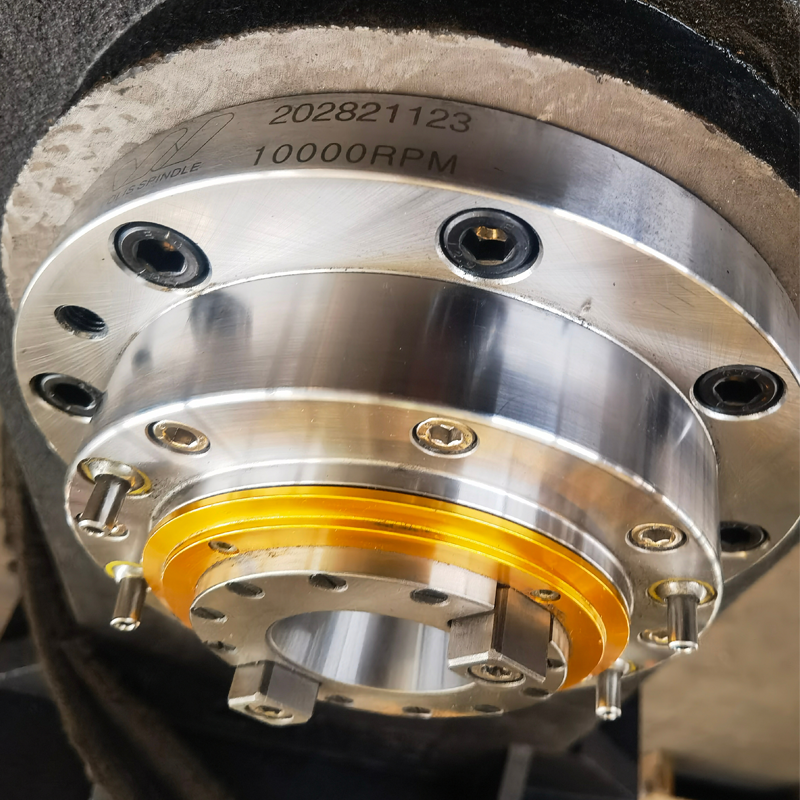

TAIWAN High Precision Spindle Unit
1)Taiwan High Speed, Stable Perfomance
2)8000,10000,12000,18000rpm,20000rpm speed available
3)BT40,BT50 ,HSKA Spindle Taper freely choosen

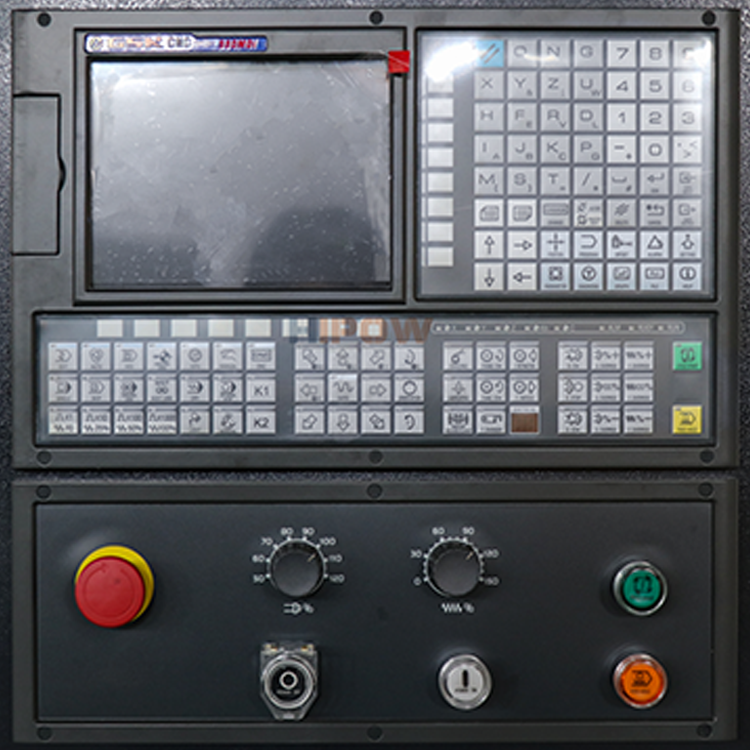

Top brand reliable CNC controller
1.Fanuc ,Mitsubishi ,Siemens ,Syntech and GSK are avaiable
2.Top cnc controller with original CNC servo motor ,servo driver,
original controller panel

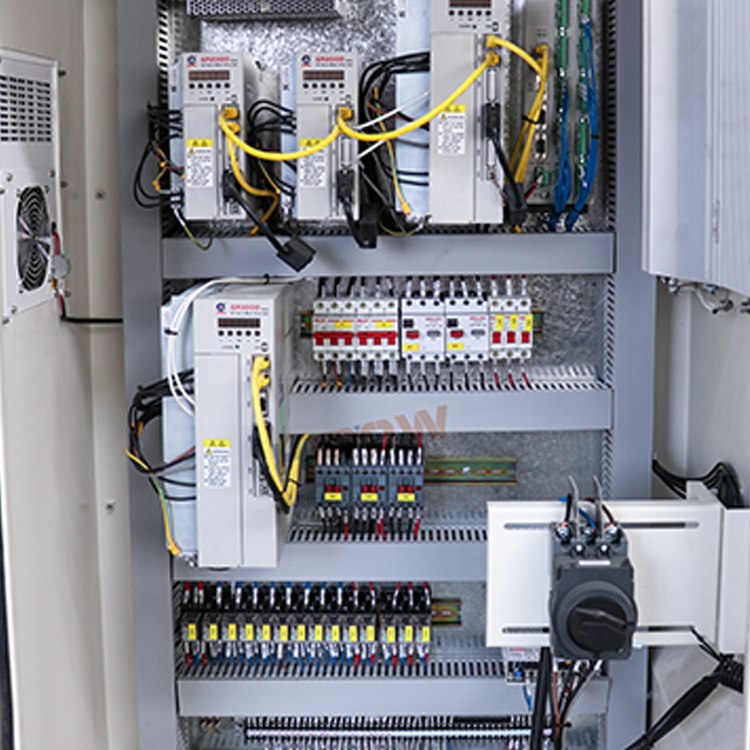

GSK980MDl Original Servo Driver

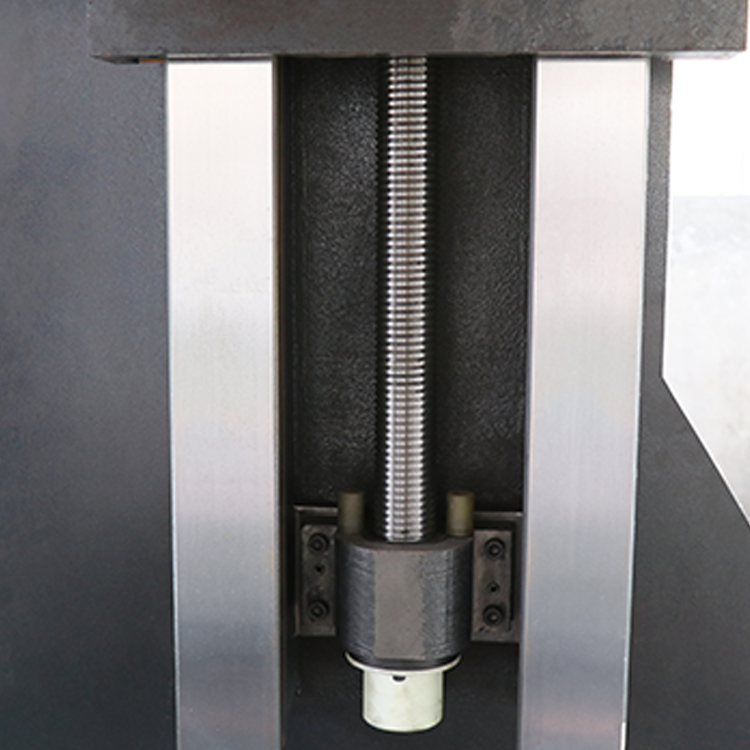

High Rigidity ,hig precision ,rectangle hard rails
with plastic-layer surface coating

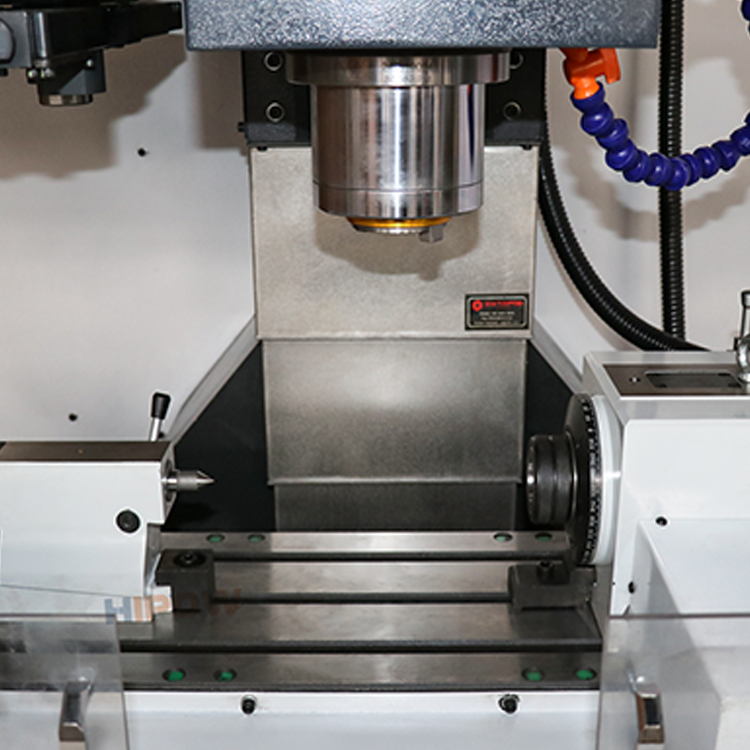

4th Axis
FK15145 CNC Dividing Head
+145mm CNC Rotary Table
+160mm manual chuck
+Manual Tailstock
+CNC servo motor
+CNC servo driver
Q1. How can l get a quotation?
A. Leave us massage with your purchase requements and we will reply
you ASAP. And you may contact us directly by Trade Manager or Telephone.
Q2. Can you provide customized machine or SPM (Special purposemachine)?
A. Yes, we provide smart CNC solutions for our customer, in order increase efficiency.
Q3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.
Q4. How about your price?
A. Send me details about what you need, you will get the best
price in China. The price is competitive over the world.
Q5.What's the delivery time, and what's the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines
packed with sea worthy package.
