XK6132 CNC Milling Machine
Item Number： HP-NC008
Machine Condition： New
Machine in stock： 1
Delivery time： 35 Days
Payment terms： T/T
Warranty： 1 Year
Afer Sales Service： Online support ,free machine pparts
Product introduction
XK6132 CNC Milling Machine
Main Feature
1.Aseismatic capability, high strength and good quality cast iron.
2.Top reliable CNC controller: Fanuc ,Mitsubishi ,Siemens，
Syntech and GSK
3.Taiwan HlWN high precision linear rails, HIWIN ball screw
4. Taiwan brand,8K,10K,12k spindle unit
5.Taiwan OKADA umbrella/Arm type tool magazine
6.Japanese NSK bearing ,Germany R+W coupling
7. Japan HERG full automatic lubrication system
8.Taiwan pressure cylinder,and pneumatic system.
Specification | Unit | XK6132 |
Table size | mm | 1370×360 |
T slots(N/W/D) | mm | 3/18/80 |
Longitudinal travel | mm | 1000 |
Cross travel | mm | 330 |
Vertical travel | mm | 350 |
Table longitudinal feed(auto) | - | infinite |
Table cross feed(auto) | - | infinite |
Table vertical feed(auto) | - | infinite |
Distance between spindle and table surface | mm | 30-350 |
Spindle hole taper | - | Is0 50(7:24) |
Spindle speed step | step | 18 |
Spindle speed range | r/min | 30-1500 |
Table swivel angle | - | ±45° |
Power of spindle motor | kw | 7.5 |
Torque of X/Y/Z axis AC servo motor | N.m | 10/10/23 |
Overall size | mm | 2294×2050×1904 |
Net weight | kg | 3200 |
Max.Tool weight | Kg | 7.5 |
Electricitty supply required | KVA | 25 |
Air pressure required | Kgf/cm2 | 5-7 |
Positioning accuracy | mm | ±0.005 |
reposttioning accuracy | mm | ±0.003 |
Machine dimensions(L×W×H) | cm | 280×225×256 |
Machine weight(N.w/G.w) | T | 6.0/6.4 |
TAIWAN High Precision Spindle Unit
1)Taiwan High Speed, Stable Perfomance
2)8000,10000,12000,18000rpm,20000rpm speed available
3)BT40,BT50 ,HSKA Spindle Taper freely choosen

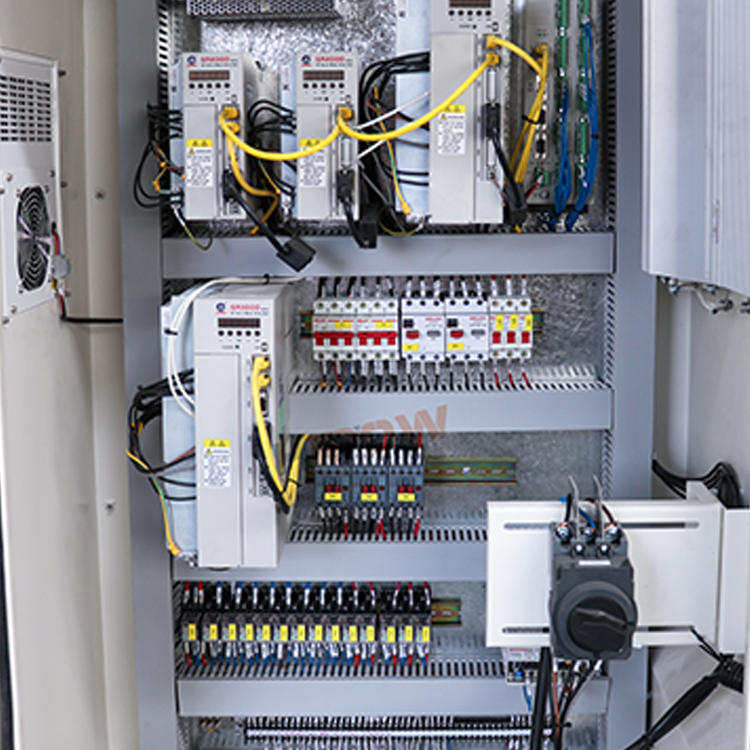

Top brand reliable CNC controller
1.Fanuc ,Mitsubishi ,Siemens ,Syntech and GSK are avaiable
2.Top cnc controller with original CNC servo motor ,servo driver,
original controller panel
GSK980MDl Original Servo Driver
Taiwan HlWN high precision linear rails
High Rigidity ,hig precision ,rectangle hard rails
with plastic-layer surface coating

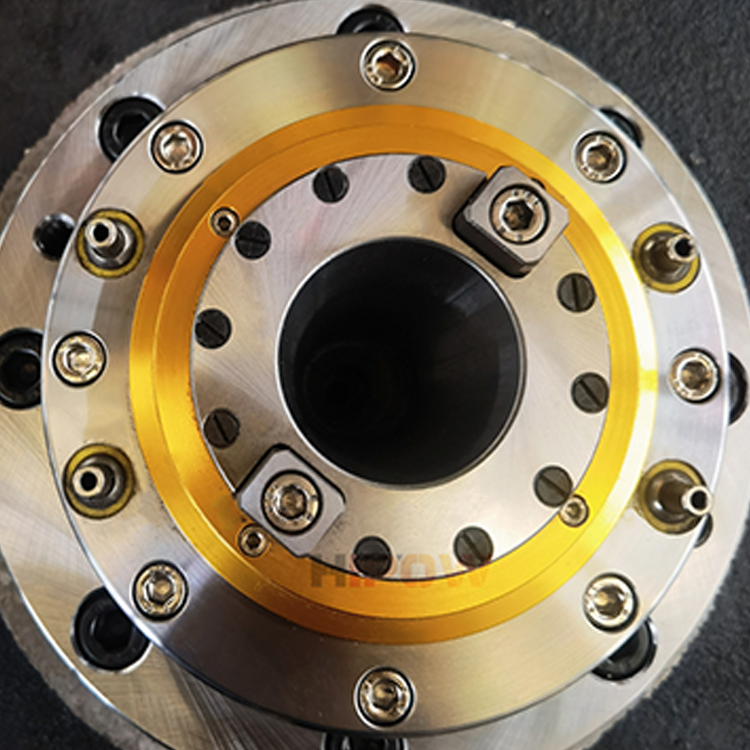

4th Axis
FK15145 CNC Dividing Head
+145mm CNC Rotary Table
+160mm manual chuck
+Manual Tailstock
+CNC servo motor
+CNC servo driver
Q1. How can l get a quotation?
A. Leave us massage with your purchase requements and we will reply
you ASAP. And you may contact us directly by Trade Manager or Telephone.
Q2. Can you provide customized machine or SPM (Special purposemachine)?
A. Yes, we provide smart CNC solutions for our customer, in order increase efficiency.
Q3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.
Q4. How about your price?
A. Send me details about what you need, you will get the best
price in China. The price is competitive over the world.
Q5.What's the delivery time, and what's the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines
packed with sea worthy package.
