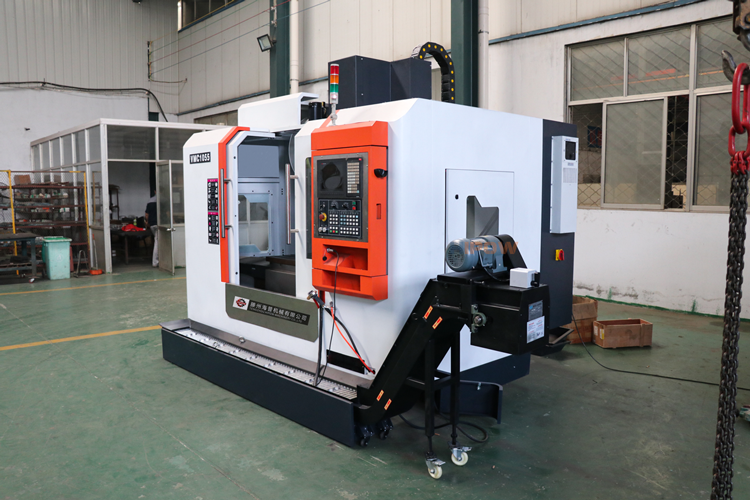

VMC1055 Vertical Machining Center
Item Number： HP-NC-006
Machine Condition： NEW
Machine in stock： 2
Delivery time： 15-35 Days
Payment terms： T/T
Warranty： 1 Year
Afer Sales Service： Online support, Video technical support, Free spare parts
Product introduction
VMC1055 Vertical Machining Center
Main Feature
1.Aseismatic capability, high strength and good quality cast iron.
2.Top reliable CNC controller: Fanuc ,Mitsubishi ,Siemens
Syntech and GSK
3.Taiwan HlWN high precision linear rails, HIWIN ball screw
4. Taiwan brand,8K,10K,12k spindle unit
5.Taiwan OKADA umbrella/Arm type tool magazine
6.Japanese NSK bearing ,Germany R+W coupling
7. Japan HERG full automatic lubrication system
8.Taiwan pressure cylinder,and pneumatic system.
Specifications | Unit | VMC1055 |
Table size | mm | 1000x500 |
T-slot(No.x width x pitch) | mm | 5x18x100 |
Max.table load | kg | 580 |
Guide rail type | X/Y/Z Linear way | |
X/Y/Z axis traverse | mm | 1000x500x510 |
Distance from spindle nose to worktable | mm | 1200-660 |
Distance from spindle center to column | mm | 600 |
Spindle taper | BT40 | |
Spindle speed | rpm | 8000 |
Spindle Drive | Blet | |
Spindle Motor | kw | 7.5 |
X/Y/Z Ballscrew(diameter x pitch) | mm | 4012/4012/4012 |
X/Y/Z axis rapid feed speed | m/min | 36/36/36 |
X/Y/Z axis cutting feed rate | m/min | 10 |
Magazine type | Arm / Armless | |
Magazine capactiy | BT40-16/24 | |
Max.Tool length | mm | 300 |
Max.Tool weight | kg | 7.5 |
Electricitty supply required | KVA | 25 |
Air pressure required | Kgf/cm2 | 5-7 |
Positioning accuracy | mm | ±0.005 |
reposttioning accuracy | mm | +0.003 |
Machine dimensions(LxwxH) | cm | 280x225x256 |
Machine weight(N.w/G.w) | T | 6.0/6.4 |
TAIWAN High RigidityAutomatic Top QualityCNC Tools Magazine
1)Taiwan OKADA Arm type toolmagazine
2)BT40 ,BT50 ,16T,24T,32T toolmagazine can be choosen
TAIWAN High Precision Spindle Unit
1)Taiwan High Speed, StablePerfomance
2)8000,10000,12000,18000mpm,20000rpm speed available
3)BT40,BT50 ,HSKA Spindle Taperfreely choosen
Top brand reliable CNccontroller
1)Fanuc ,Mitsubishi ,SiemensSyntec and GSK are avaiable
2)Top cnc controller with originalCNC servo motor ,servo driveroriginal controller panel
Taiwan HIWIN highprecision linear rails,ithas perfect
self-aligningcapability , good Inter-changeability ,and
highrigidity in all fourdirections
5th Axis CNC RotaryTable
1) Rotated Tool Center PointFunction( RTCP)
2) apan made dual-lead wormand worm gear
3) Radial-axial bearings for heavyduty cutting.
4) High rigidity,high precision,highwater-resistance
Renishaw High-perfor-mance TS27R PrecisionTool Setter
Q1. How can l get a quotation?
A. Leave us massage with your purchase requements and we will reply
you ASAP. And you may contact us directly by Trade Manager or Teleph-one.
Q2. Can you provide customized machine or SPM (Special purpose
machine)?
A. Yes, we provide smart CNC solutions for our customer, in order increa-
se efficiency.
Q3. Can you provide training for operation CNc machines?
A. Yes, free training in our factory is available.
Q4. How about your price?
A. Send me details about what you need, you will get the best
price in China. The price is competitive over the world.
Q5.What's the delivery time, and what's the package?
A.Normally the delivery time is about 30-45 days. All our CNC machines
packed with sea worthy package.
