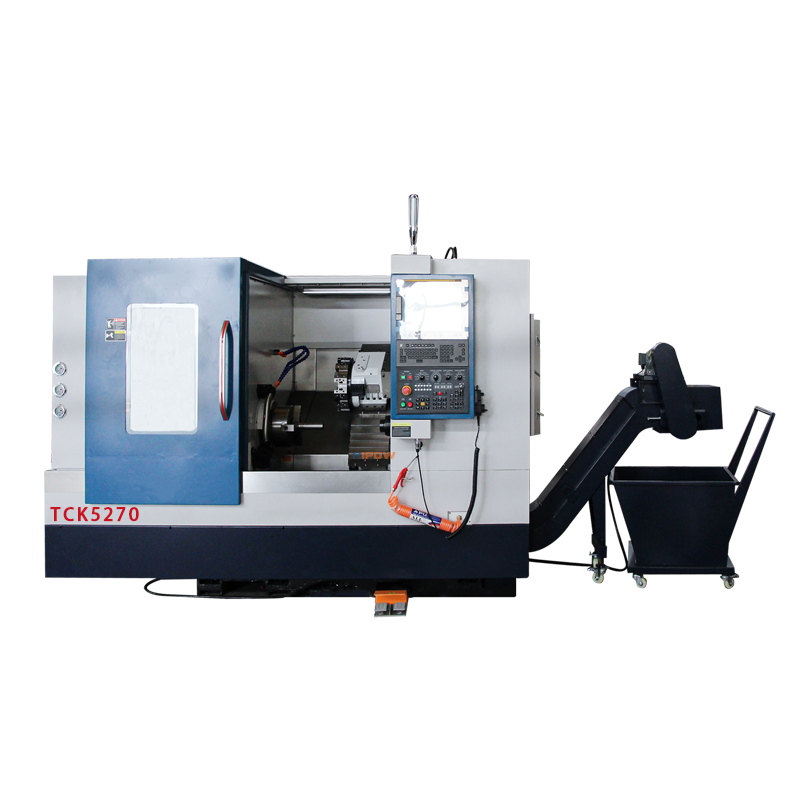

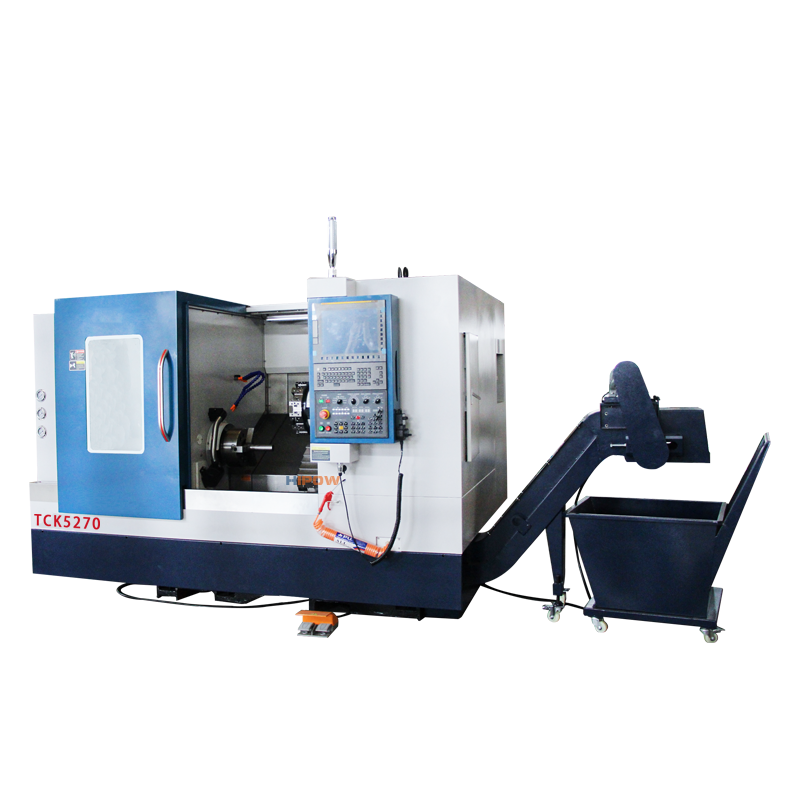

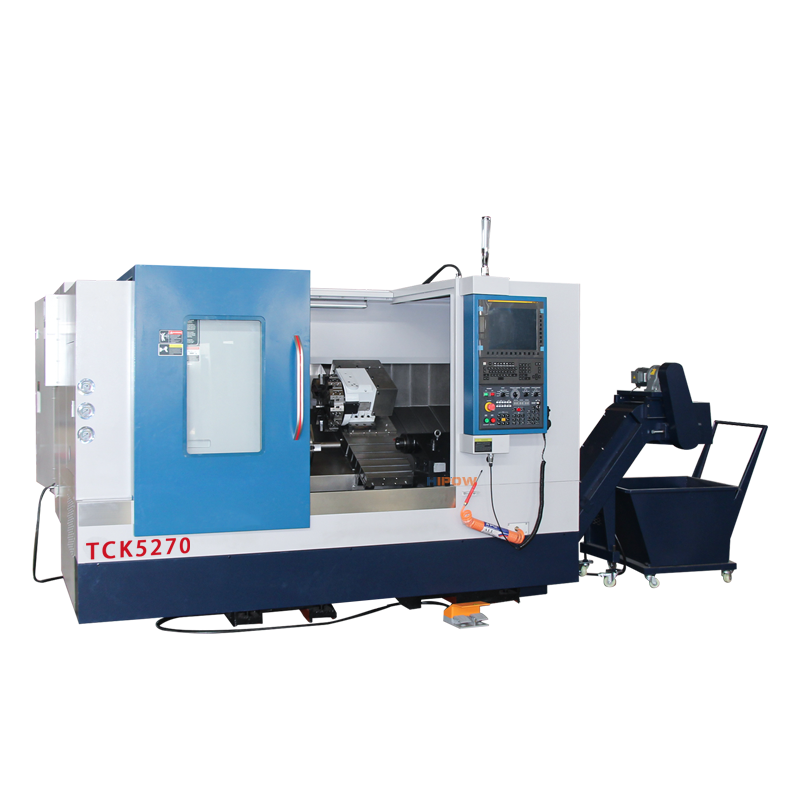

TCK5270 Slant Bed CNC Lathe

Main Feature

1. Monoblock cast iron of the whole machine ensure high rigidity.Compact

design with HT300 high tension Meehanite cast-iron machine bed. Perfect

accessibility and optimal working depth.

2.Up-To-Date internation CNC Lathe Technologies: BMT/ VDl Living Tool

Turrtet ,Renishaw Automatic Tool Setter ,Renishaw Workpieces Measuring

Sensor , Fanuc Oi-TF with Manual Guidei or Siemens One with Shopturn

function, and plenty of interactive operation interface

3.X,Z Axis Taiwan high precision linear rails , Taiwan ball screw pre-extended

structure to reduce the heat-deformation and improve the precision and rigidity.

Japan NSK special screws angular contact ball bearing group.

4.Well-tested design of the machine structuure ,30°,45°,60°slant bed is

avaible , suitable for turning of disc and shaft parts with complicated shapes

and high precision processing requirements. lt also can process straight, arc,

metric and inch threads, and multi-threaded.

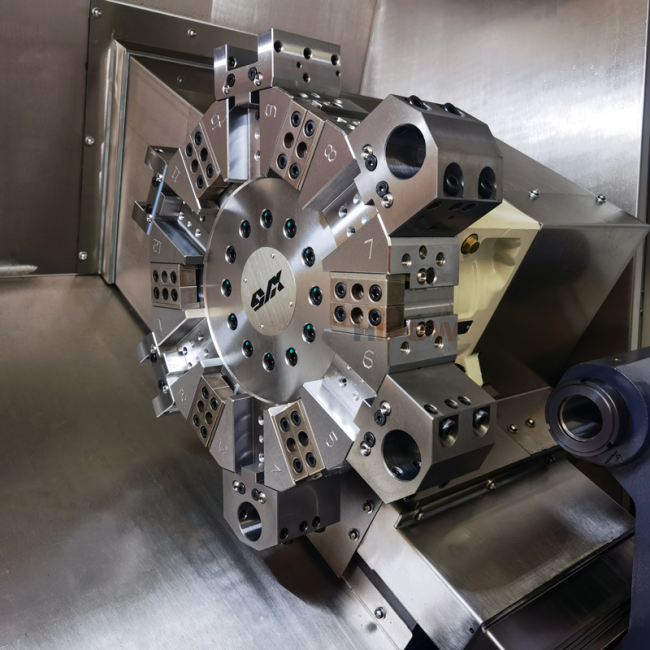

12-station servo turret

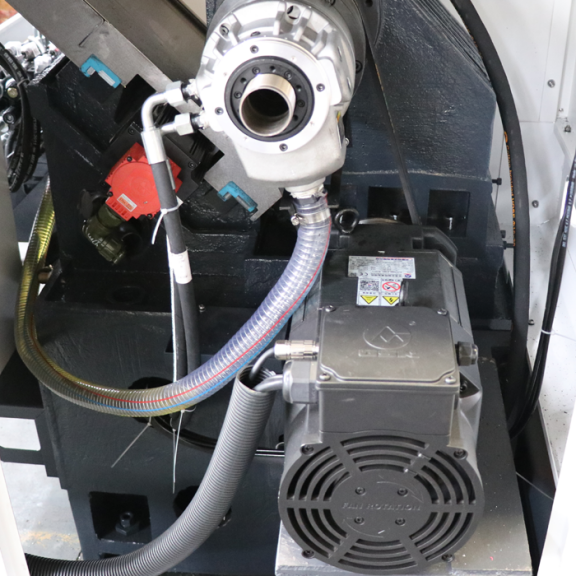

11 KW  Main Motor

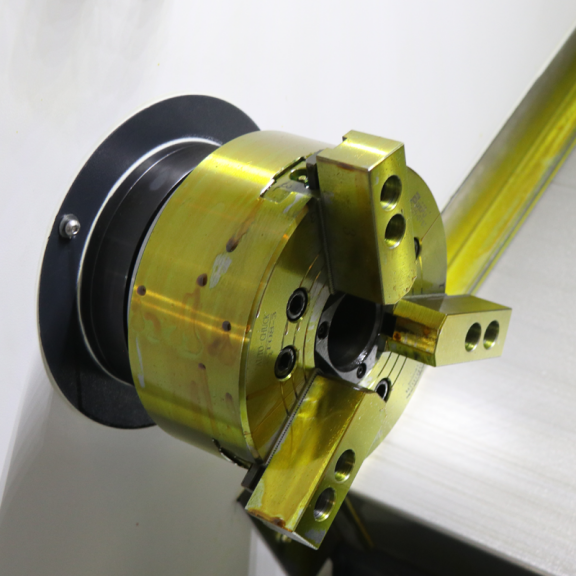

8inch Hydraulic Hollow Chuck

Q1. How can l get a quotation?

A. Leave us massage with your purchase requements and we will reply

you ASAP. And you may contact us directly by Trade Manager or Telephone.

Q2. Can you provide customized machine or SPM (Special purposemachine)?

A. Yes, we provide smart CNC solutions for our customer, in order increase efficiency.

Q3. Can you provide training for operation CNC machines?

A. Yes, free training in our factory is available.

Q4. How about your price?

A. Send me details about what you need, you will get the best

price in China. The price is competitive over the world.

Q5.What's the delivery time, and what's the package?

A. Normally the delivery time is about 30-45 days. All our CNC machines

packed with sea worthy package.
