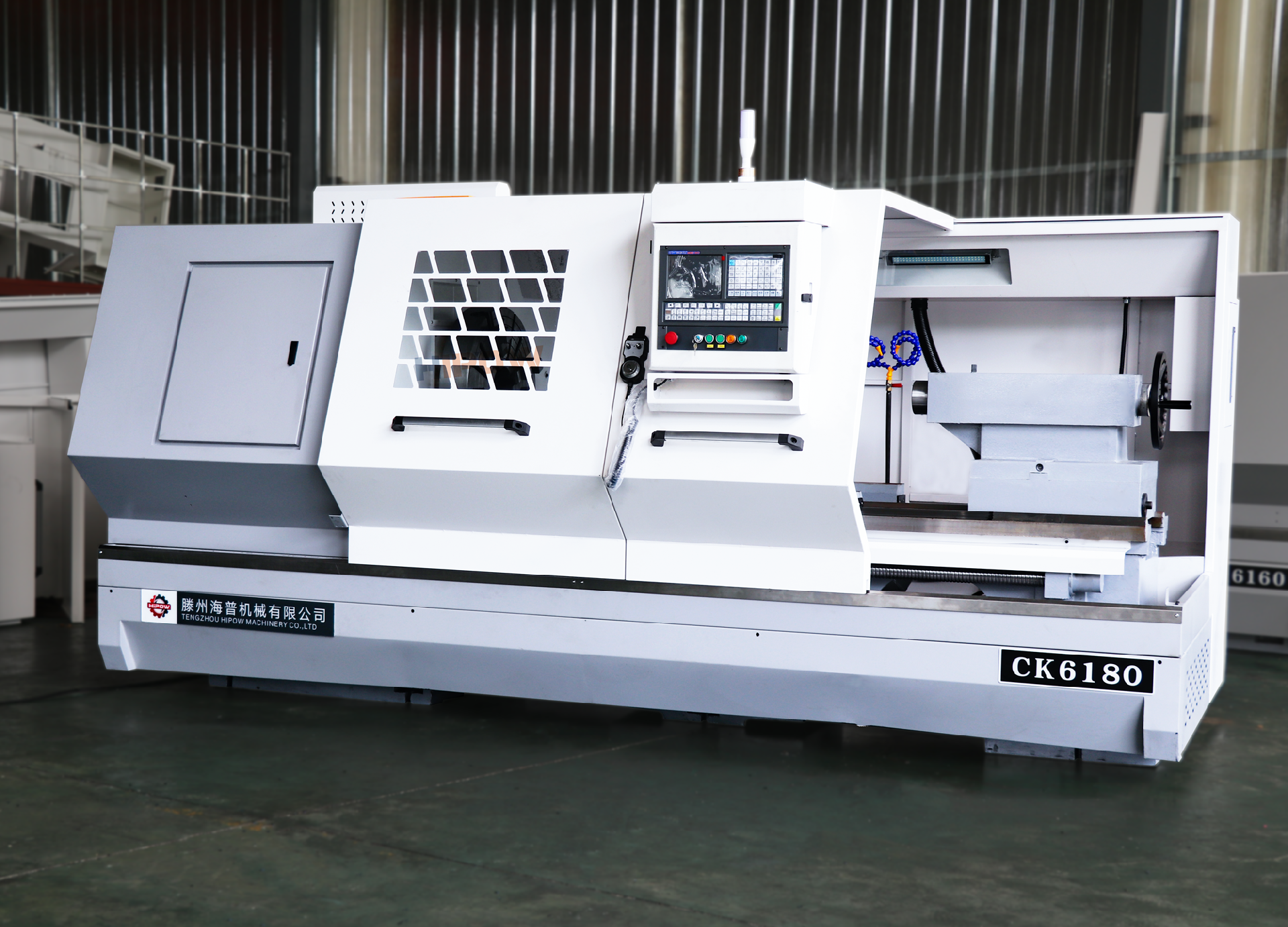

CK6180X3000 CNC Lathe
Item Number： HP-NC-0098
Machine Condition： NEW
Machine in stock： 1
Delivery time： 60 Days
Payment terms： T/T
Warranty： 1 Year
Afer Sales Service： Online support, Video technical support, Free spare parts
Product introduction
CK6180X3000 CNC Lathe
Main Feature
1. Monoblock cast iron of the whole machine ensure high rigidity.Compact design
with HT300 high tension Meehanite cast-iron machine bed.
2.Adopt domestic famous ball screw and high-precision screw bearing.
3.The guide rail is equipped with a scraping device to prevent the guide rail from
being corroded by iron filings and coolant, and to facilitate the cleaning of the
iron filings.
4.Well-tested design of the machine structure suitable for turning of disc and
shaft parts with complicated shapes and high precision processing requirements.
It also can process straight, arc, metric and inch threads, and multi-threaded.
5.All lubrication points adopt a forced automatic lubrication device for fixed-point
and quantitative lubrication of the lead screw and guide rail.
ltem | unit | Parameter | |
Maximum turning diameter on the bed | mm | φ80 | |
Maximum turning diameter on the cross slide | mm | φ500 | |
Maximum workpiece turning length | mm | 1500 | |
Bed width | mm | 660 | |
Range of rotation | Manual third gear | r/min | low 15-110 ,mid-range 90-250 ,high 250-850 |
Spindle head/spindle through hole diameter | mm | A2-11,105mm | |
Chuck Form | mm | Manual Chuck,φ400 | |
X/Z axis maximum travel | mm | X:450 Z:1500 | |
X/Z axis rapid traverse speed | m/min | X:5 Z:6 | |
Tool holder form | 4 station | ||
Cutter Size | mm | 32x32 | |
tailstock | manual | ||
Sleeve diameter/stroke/bore taper | mm | φ100/200/MT6 | |
X-direction/Z-direction screw diameter | mm | Xφ32，Zφ50 | |
Repeatability | mm | X axis≤0.0075mm Z axis≤0.01mm | |
Surface Roughness (Steel) | ≤Ra1.6 | ||
Manual third gear | kw | 15 | |
X/Z axis feed motor | N.m | 15/15 | |
Dimensions (L×W×H) | mm | 3350×2100×1950 | |
Net weight | kg | 5200 | |
1.400mm Manual Chuck with Soft/Hard Jaw
2. Precision Tool Post
1) Standard vertical 4 position tool post
2) Optional 6/8-position electric tool holder
3. Reliable ControlSystem
1) Standard : GSK980, KND System
2) Optional:Fanuc,Siemens,and other customized system
4. Customized Tail Stock
1) Standard tail stock is manual
2) Hydraulic tail stock can be customized
5.660mm Bed WidthLathe Body
Strictly Processed Hardened-tempered casting machine body
make the lathe perform precisely
Q1. How can l get a quotation?
A. Leave us massage with your purchase requements and we will reply
you ASAP. And you may contact us directly by Trade Manager or Telephone.
Q2. Can you provide customized machine or SPM (Special purposemachine)?
A. Yes, we provide smart CNC solutions for our customer, in order increase efficiency.
Q3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.
Q4. How about your price?
A. Send me details about what you need, you will get the best
price in China. The price is competitive over the world.
Q5.What's the delivery time, and what's the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines
packed with sea worthy package.
