: CK6180/1500MM CNC Lathe

Item Number：
Machine Condition： NEW
Machine in stock： 1
Delivery time： 30-40 Days
Payment terms： T/T
Warranty：
Afer Sales Service：

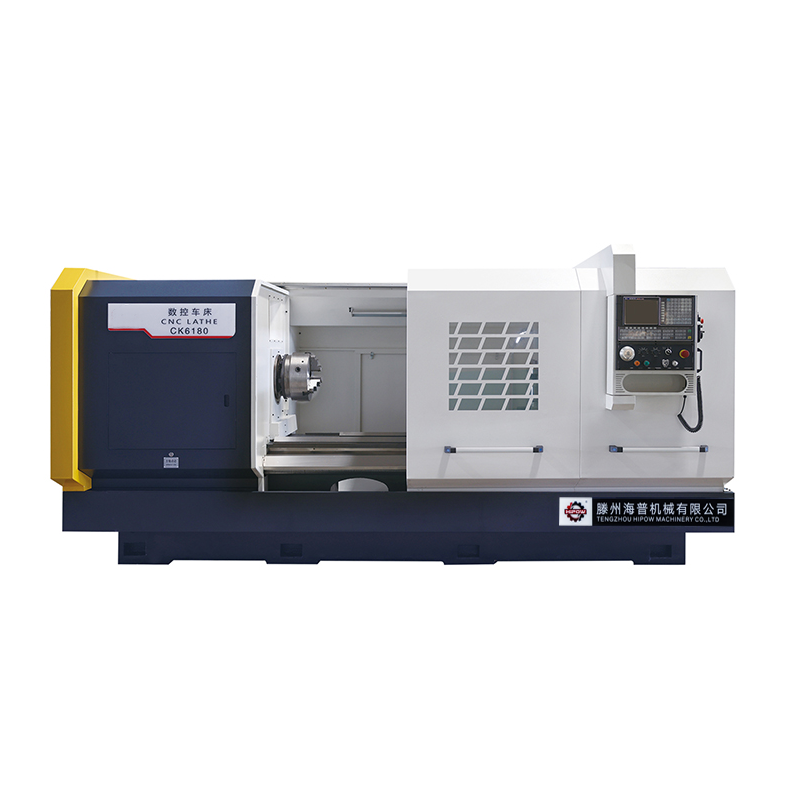

CK6180/1500MM CNC Lathe


Main Feature

1. Monoblock cast iron of the whole machine ensure high rigidity.Compact design

with HT300 high tension Meehanite cast-iron machine bed.

2.Adopt domestic famous ball screw and high-precision screw bearing.

3.The guide rail is equipped with a scraping device to prevent the guide rail from

being corroded by iron filings and coolant, and to facilitate the cleaning of the

iron filings.

4.Well-tested design of the machine structure suitable for turning of disc and

shaft parts with complicated shapes and high precision processing requirements.

It also can process straight, arc, metric and inch threads, and multi-threaded.

5.All lubrication points adopt a forced automatic lubrication device for fixed-point

and quantitative lubrication of the lead screw and guide rail.

Model		unit	CK6180

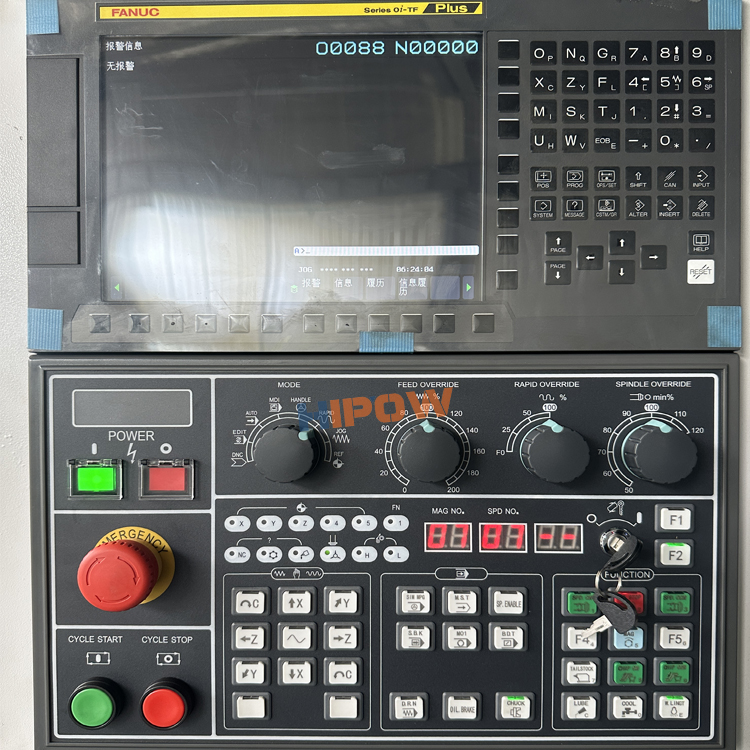

Nc System		mm	(Standardequipment):GSK980TC3 (Alternative configuration):FANUC OiTF;SIMENS 808D;KND K1000Ti ; GSK980TDC
Max dia.swing over bed		mm	800
Max dia.swing over cross slide		mm	530
Max.length of work-piece		mm	1500
Width of bed		mm	550
Spindle bore		mm	105
Spindle nose			C11
Spindle taper hole			120/1:20
Power of spindle motor		KW	11
Mode of spindle speed			Thee gears,smooth adjustment
Range of spindle speed		r/min	(L):10-200 (M):180-500 (H):480-1200
X/Z rapid traverse		mm/min	4000/5000
Min.Feeding set umit of X/Z		mm	0.001

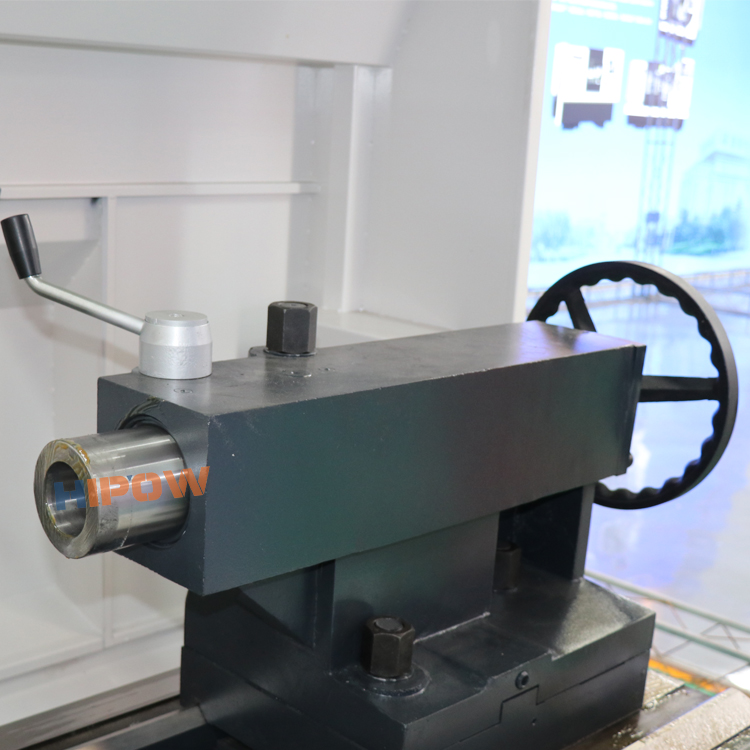

Tailstock quill	Diameter	mm	100
	Travel	mm	250
	Taper		Morse NO.5/6
Turret	Model		HAK-21240
	No.of tool stations		Vertical four-station
	Dimension	mm	32X32
	Turret indexing time	s	4.1
Chuck			K11-320 three jaw chuck
Overall dimensions(LwH)		mm	3650x1880x1880
Machine weight		T	5.5
