X6336 Universal Milling Machine
Item Number： HP-NC-0041
Machine Condition： NEW
Machine in stock： 1
Delivery time： 10-35 Days
Payment terms： T/T
Warranty： 1 Year
Afer Sales Service： Online support, Video technical support, Free spare parts
Product introduction

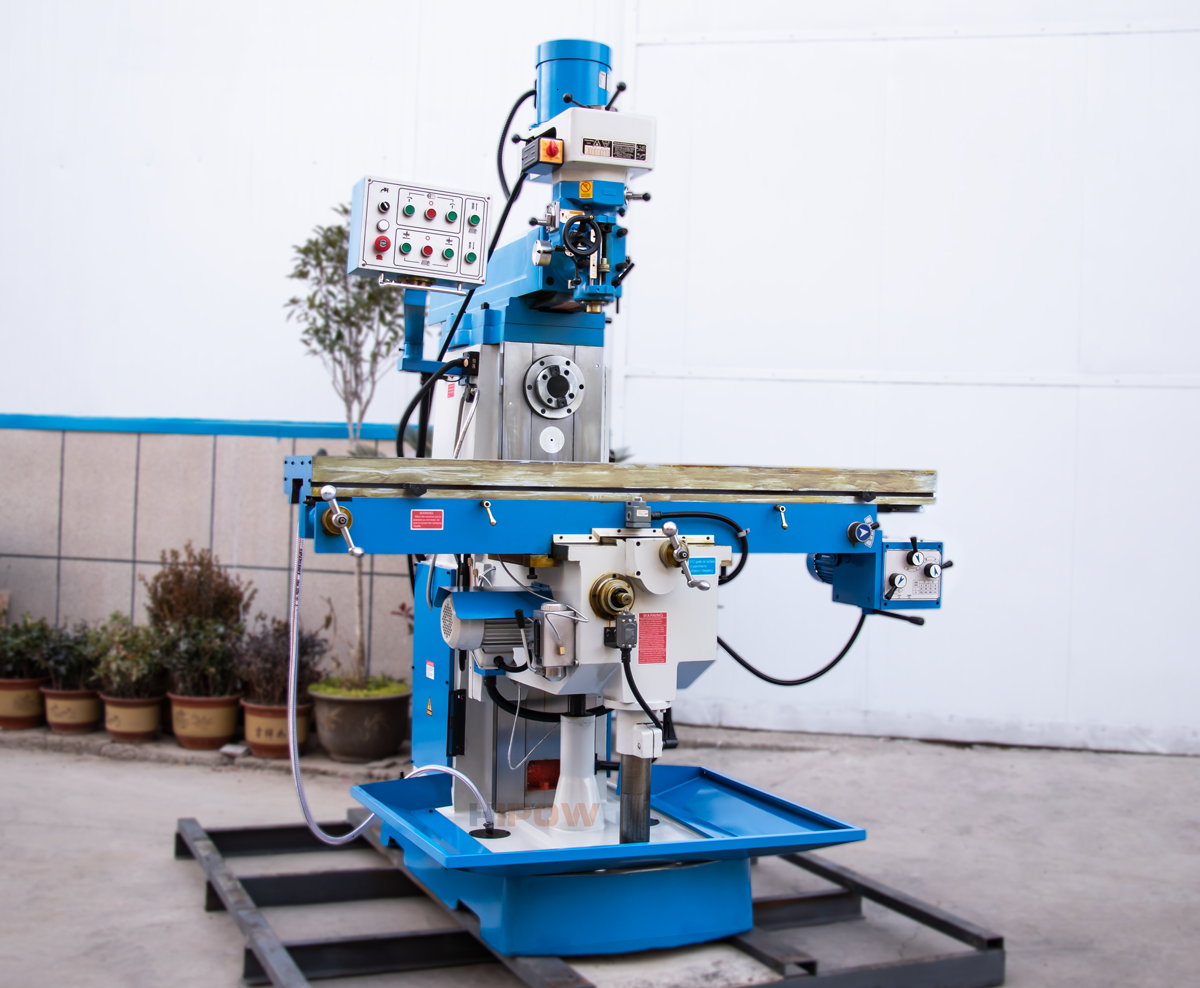

X6336 Universal Milling Machine
Main Feature
1.Miling head has automtic feed function and swivels ±45 degree
2.The Machine has drilling and tapping function
3.X,Y,Z 3 Axis Auto Feed
4.Full-featured and flexible
5.The Machine Can be added slotting head and swivel table
6.Work Table Surface and Guide ways Hardened by Supersonic
Frequency Quenching
7.Work Table Made by HT200-250 High Strength Cast lron
8.Dovetail Table Guide ways Withstand Larger Overturning Moment
9.Vertical Milling Spindle Auto-Feeding
10.Gear Drive Miling Head
ltem | X6336 |
Spindle taper | 7:24 IS0 40 (Vertical) 7:24150 50 (Horizontal) |
Spindle speed range(r.p.m) | (16steps)66--4540 (Vertical) (12 steps)60---1800 (Horizontal) |
Worktable size(mm) | 1500*360 |
Worktable travel(L/H/V)(mm) | 1000/320/400 |
Worktable powerful feed speed(L/H)(mm/min) | (8steps)22---555(rapid feed 830) |
Worktable powerful elevating speed(mm/min) | 590 |
Worktable t-slot (number/width/distance) | 3/18/80 |
Beam travel (mm) | 500 |
Main motor(kw) | 3.7(Vertical)/4(Horizontal) |
Worktable powerful elevating motor (W) | 750 |
Worktable powerful feed motor(w) | 1100 |
Coolant pump motor | 90 |
Overall Size(mm) | 2220*1790*2360 |
Net weight(kG) | 2340 |
AC Power Input | 380v50/60HZ |
Overall Dimension(mm) | 2000x1860x2220 |
AC Power Input (V/HZ) | 380V50HZ |
NT40 ,5HP Powerful Milling Head
ISO50 Horizontal Milling Spindle
Heavy Duty Hydrualic Table Support System can be choosen
X,Y,Z Axis RectangleHard Guideway
XY Axis Automatic Feed Gear Box
1800rpm Speed Horizontal Spinde
Q1. How can l get a quotation?
A. Leave us massage with your purchase requements and we will reply
you ASAP. And you may contact us directly by Trade Manager or Telephone.
Q2. Can you provide customized machine or SPM (Special purposemachine)?
A. Yes, we provide smart CNC solutions for our customer, in order increase efficiency.
Q3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.
Q4. How about your price?
A. Send me details about what you need, you will get the best
price in China. The price is competitive over the world.
Q5.What's the delivery time, and what's the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines
packed with sea worthy package.
