X6436 Universal Milling Machine
Item Number： HP-NC-0135
Machine Condition：
Machine in stock：
Delivery time：
Payment terms：
Warranty：
Afer Sales Service：
Product introduction
X6436 Universal Milling Machine
Main Feature
1.Miling head has automtic feed function and swivels ±45 degree
2.The Machine has drilling and tapping function
3.X,Y,Z 3 Axis Auto Feed
4.Full-featured and flexible
5.The Machine Can be added slotting head and swivel table
6.Work Table Surface and Guide ways Hardened by Supersonic
Frequency Quenching
7.Work Table Made by HT200-250 High Strength Cast lron
8.Dovetail Table Guide ways Withstand Larger Overturning Moment
9.Vertical Milling Spindle Auto-Feeding
10.Gear Drive Miling Head
ltem | X6436 |
Spindle Taper | IS040 (V)/IS0 50(H) |
Worktable Size(mm) | 1700X400 |
MAX Manual Worktable Travel (L/H/V)(mm) | 900/315/380 |
MAX Automatic Worktable Travel (L/H/V)(mm) | 880/300/360 |
Worktable T-Slot (nunmber/width/distance)(mm) | 3/18/70 |
Swivel Angle of worktable | ±45 degree |
Swivel Angle of Vertical Milling Head | 360 degree |
Spindle Speed | 12 steps (V),18 steps(H) |
Spindle Speed Range(r.p.m) | 35-1600(V),30-1500(H) |
Max Load (Kg) | 700 |
Main Motor(Kw) | 4KW (V),11 KW(H) |
Power Feed Motor(kw) | 1.5 |
Coolant Pump Motor(w) | 125 |
Range of Table Power Feed (18steps)(L,H/V)(mm/min) | 23.5---1180(L/H)//8---394(V) |
Speed of Table Rapid Traveling (mm/min) | 2300(L/H)/770(V) |
Overall Dimension(mm) | 2294x1770x1665 |
AC Power input (V/HZ) | 380V/415V50HZ |
N.W | 3800kg |
IS050 ,360° SwivelUniversal Milling Head

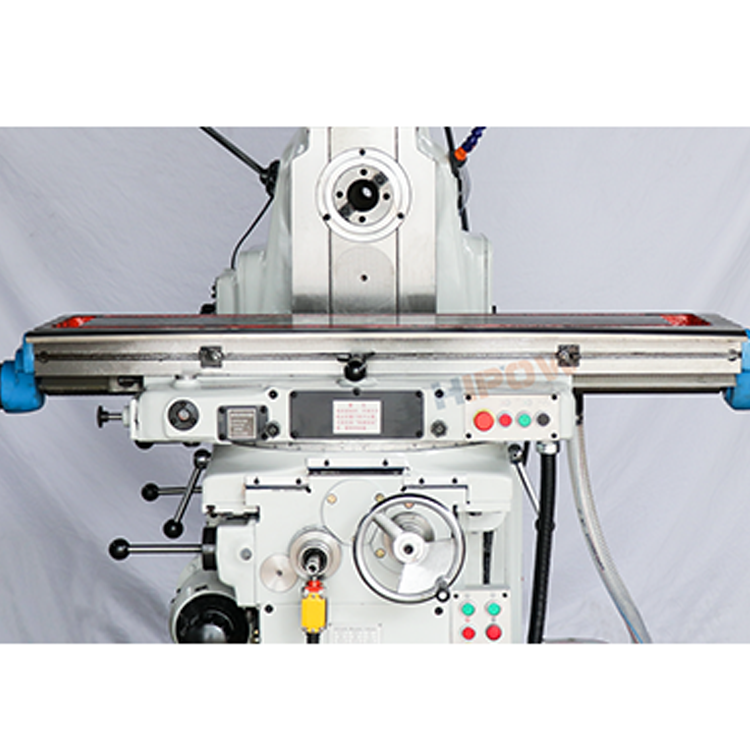

High Quality machine body and worktable
1.The machine`s worktable is1700x400mm
2.The Manual X/Y/Z travel is 900/315/380mm

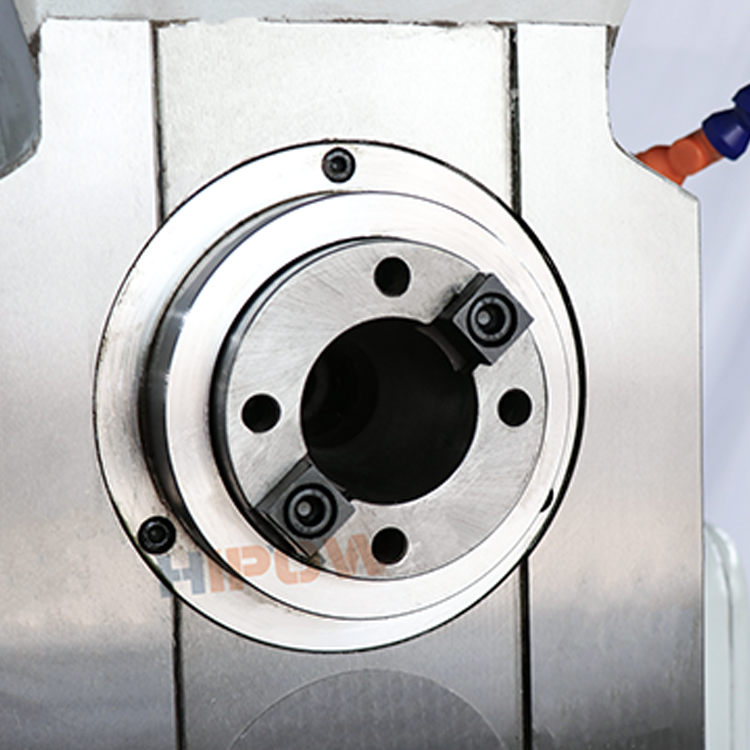

Iso 50 big spindle taper
Powerful Pneumtic Draw Bar
High effective ,heavyduty speed transmissionsy stem
Universal dividing head can be driven
Q1. How can l get a quotation?
A. Leave us massage with your purchase requements and we will reply
you ASAP. And you may contact us directly by Trade Manager or Telephone.
Q2. Can you provide customized machine or SPM (Special purposemachine)?
A. Yes, we provide smart CNC solutions for our customer, in order increase efficiency.
Q3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.
Q4. How about your price?
A. Send me details about what you need, you will get the best
price in China. The price is competitive over the world.
Q5.What's the delivery time, and what's the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines
packed with sea worthy package.
