X6132 Horizontal Milling Machine
Item Number： HP-NC-0063
Machine Condition： NEW
Machine in stock： 5
Delivery time： 10-35 Days
Payment terms： T/T
Warranty： 1 Year
Afer Sales Service： Online support, Video technical support, Free spare parts
Product introduction
X6132 Horizontal Milling Machine
Main Feature
1.Miling head has automtic feed function and swivels ±45 degree
2.The Machine has drilling and tapping function
3.X,Y,Z 3 Axis Auto Feed
4.Full-featured and flexible
5.The Machine Can be added slotting head and swivel table
6.Work Table Surface and Guide ways Hardened by Supersonic
Frequency Quenching
7.Work Table Made by HT200-250 High Strength Cast lron
8.Dovetail Table Guide ways Withstand Larger Overturning Moment
9.Vertical Milling Spindle Auto-Feeding
10.Gear Drive Miling Head
ltem | X6132 |
Spindle Taper | IS0 50 |
Worktable Size(mm) | 1325×320 |
MAX Manual X/Y/Z Travel (mm) | 700/255/320 |
MAX Automatic X/Y/Z Travel (mm) | 680/240/300 |
Worktable T-Slot (mm) | 3/18/70 |
Swivel Angle of Worktable | ±45 degree |
Spindle to Worktable(mm) | 30---350 |
Spindle Center to Ram (mm) | 155 |
Spindle Speed Range(r.p.m) | 30-1500 |
Spindle Sleeve Travel(mm) | 105 |
Max Load (kg) | 500 |
Main Motor(Kw) | 7.5 |
Power Feed Motor(kw) | 1.5 |
Coolant Pump Motor(w) | 125 |
Range of Table Power Feed (18steps)(XYZ)(mm/min) | 23.5---1180(XY)，8--394(Z) |
Speed of Table Rapid Traveling (mm/min) | 2300(X/Y)/770(Z) |
Overall Dimension(mm) | 2294x1770x1665 |
AC Power input (V/HZ) | 380V/415V50HZ |
N.W/G.W | 2650/2900kg |
High Quality machine body and worktable
1.The machine's worktable is1700x400mm
2.The Manual X/Y/Z travel is 900/315/385mm
ISO 50 big spindle taper
18 Steps 30-1500rpm Hoontal Spindle
High Precision Rectangle Rails
High effective , heavyduty speed transmission system

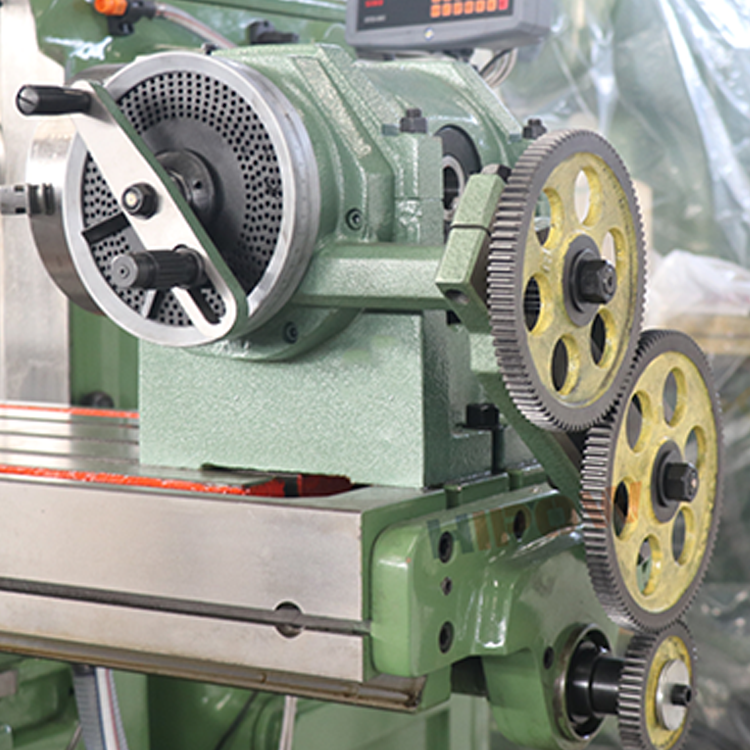

Universal dividing head can be driven
Q1. How can l get a quotation?
A. Leave us massage with your purchase requements and we will reply
you ASAP. And you may contact us directly by Trade Manager or Telephone.
Q2. Can you provide customized machine or SPM (Special purposemachine)?
A. Yes, we provide smart CNC solutions for our customer, in order increase efficiency.
Q3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.
Q4. How about your price?
A. Send me details about what you need, you will get the best
price in China. The price is competitive over the world.
Q5.What's the delivery time, and what's the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines
packed with sea worthy package.
