X5032 Vertical Milling Machine
Item Number： HP-NC-062
Machine Condition： NEW
Machine in stock： 4
Delivery time： 10-35 Days
Payment terms： T/T
Warranty： 1 Year
Afer Sales Service： Online support, Video technical support, Free spare parts
Product introduction
X5032 Vertical Milling Machine
Main Feature
1.Miling head has automtic feed function and swivels ±45 degree
2.The Machine has drilling and tapping function
3.X,Y,Z 3 Axis Auto Feed
4.Full-featured and flexible
5.The Machine Can be added slotting head and swivel table
6.Work Table Surface and Guide ways Hardened by Supersonic
Frequency Quenching
7.Work Table Made by HT200-250 High Strength Cast lron
8.Dovetail Table Guide ways Withstand Larger Overturning Moment
9.Vertical Milling Spindle Auto-Feeding
10.Gear Drive Miling Head
ltem | X5032 |
Spindle taper | IS0 50 ,7:24 |
Spindle to worktable(mm) | 45--415 |
Spindle center to column(mm) | 540 |
Spindle speed range(r.p.m) | 30---1500(18 steps) |
Worktable size(mm) | 320x1325 |
MAX. worktable travel(L/H/V)(mm) | 700/680,255/240,350/330 |
Rapid speed of table(X,Y,Z) | 2300/1540/770 |
Worktable t-slot (nunmber/width/distance)(mm) | 3/18/70 |
Swivel angle of headstock(degree) | ±45° |
Axis distance of the worktable(mm) | 85 |
Main motor(kw) | 7.5 |
Power feed motor(Kw) | 2.2 |
Overall dimention(mm) | 2300x1770x1900 |
N.W/G.W (Kg) | 2900/3200 |
Heavy Duty Milling Head with ±45° swivel Angle
Large lSO 50 SpindleTaper
High Quality machine body and worktable
1.The machine's worktable is 1325×320mm
2.The Manual X/Y/Z travel is700/255/350mm
High Precision Rectangle Rails

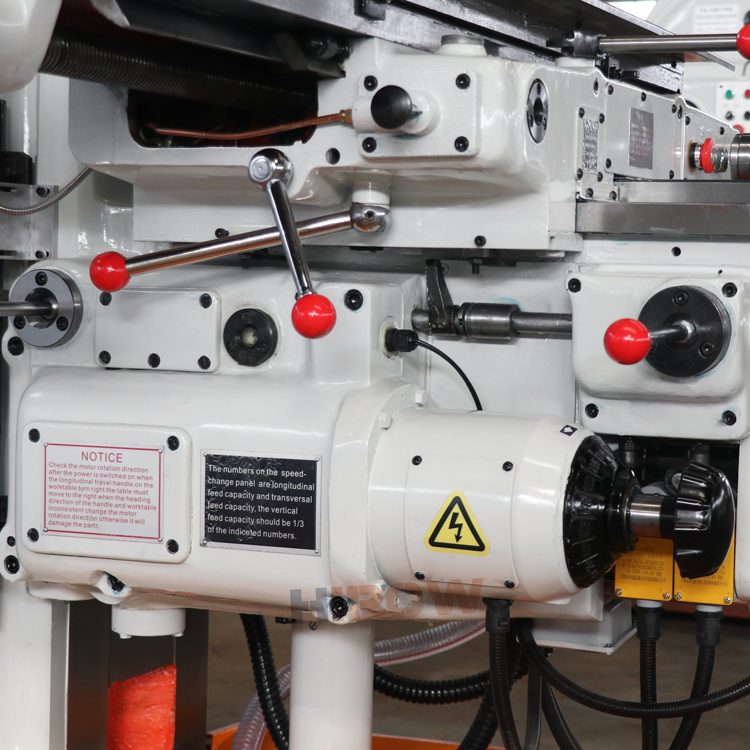

High effective , heavyduty speed transmission system
Combined Electrical Controller Panel
Q1. How can l get a quotation?
A. Leave us massage with your purchase requements and we will reply
you ASAP. And you may contact us directly by Trade Manager or Telephone.
Q2. Can you provide customized machine or SPM (Special purposemachine)?
A. Yes, we provide smart CNC solutions for our customer, in order increase efficiency.
Q3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.
Q4. How about your price?
A. Send me details about what you need, you will get the best
price in China. The price is competitive over the world.
Q5.What's the delivery time, and what's the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines
packed with sea worthy package
X5040 Vertical Milling Machine / X5036 Vertical Milling Machine
