MY1022 Hydraulic Surface Grinder
Item Number： HP-SG-007
Machine Condition： NEW
Machine in stock： 1
Delivery time： 10-35 Days
Payment terms： T/T
Warranty： 1 Year
Afer Sales Service：
Product introduction
MY1022 Hydraulic Surface Grinder
Main Feature
★The machines` casting bodys are made of special alloy steel through strict
processing and heat treatment technology. High precision and good rigidity.
★The table ball track is made of steel material, high-density steel balls, wear-
resistant, light moving, and high efficiency. The manual worktable is driven by a
synchronous belt with high stability.
★The front and rear double V-shaped slides, and precision shoveling, not only
slide smoothly and wear-resistant.
★The high-precision sleeve type grinding head adopts ultra-precision beveled
rolling bearings.Such a design ensures long life of the bearing and the surface
accuracy of the grinding.
Model | unit | MY1022 | |
Chuck size(permanent magnetic chuck) | mm | 500*250 | |
Working table | Table Size (L×W) | mm | 540*250 |
Max movement of working table(L×W) | mm | 560*260 | |
T-Slot(number×width) | mm | 1×14 | |
Grinding wheel Max distance from spindle center to table surface | mm | 420 | |
Wheel Size (Outer diameter×width×Inner diameter) | mm | φ200x20xФ31.75 | |
Wheel speed | 50HZ | r/min | 2850 |
60HZ | 3360 | ||
Longitudinal speed of working table | m/min | 3-20 | |
Cross feed(front and rear) on handwheel | Continuously(Variable Transmission) | nm/min | 600 |
Intermittently(Variable Transmission) | mm/times | 0-5 | |
Per revolution | mm | 5.0 | |
Per graduation | mm | 0.02 | |
Vertical(up and down) feed on handwheel | Per revolution | mm | 1.25 |
Per graduation | mm | 0.01 | |
Motor power | Spindle motor | kw | 1.5 |
Coolant pump motor | w | 40 | |
Hydraulic system | Hydraulic motor | kw | 1.5 |
Working pressure | Mpa | 3 | |
Oil tank capacity | L | 80 | |
Max flow | L/min | 18 | |
Working precision | The parallelism of working surface to base level | mm | 300:0.005 |
Surface roughness | μm | Ra0.32 | |
Net Weigh/Gross weight | Kg | 950/1050 | |
Overall dimension(L×W×H) | mm | 1680*1220*1720 | |
Package dimension(L×W×H) | mm | 1630*1290*1940 | |

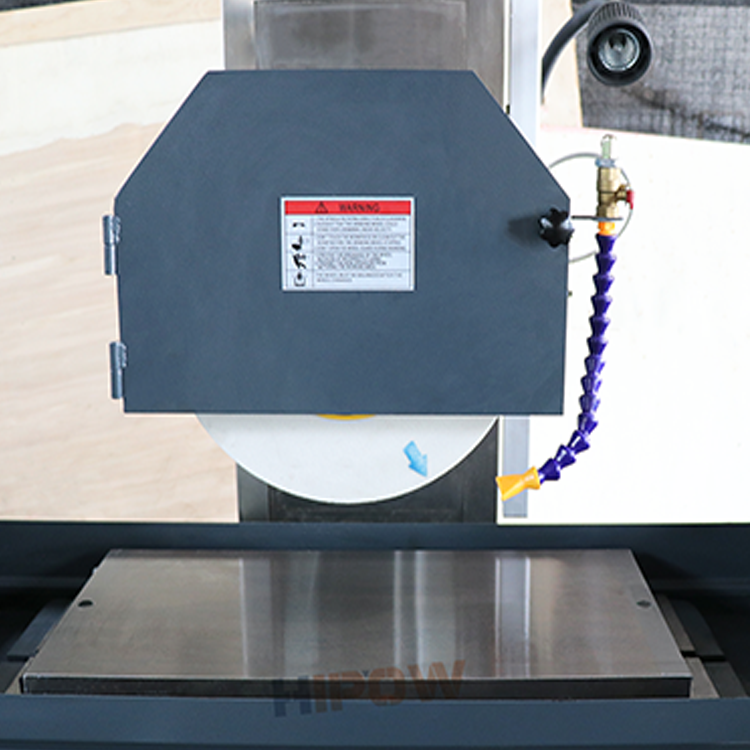

540x250mm Permanent-Magnetic Table
200*20*31.75mm Grinder Wheel
Multi-Combined control Panel
Powerful Hydrualic Station
Motorized Up/Down Z Axis
Powerful Vacuum Cleaner
Q1. How can l get a quotation?
A. Leave us massage with your purchase requements and we will reply
you ASAP. And you may contact us directly by Trade Manager or Telephone.
Q2. Can you provide customized machine or SPM (Special purposemachine)?
A. Yes, we provide smart CNC solutions for our customer, in order increase efficiency.
Q3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.
Q4. How about your price?
A. Send me details about what you need, you will get the best
price in China. The price is competitive over the world.
Q5.What's the delivery time, and what's the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines
packed with sea worthy package.
