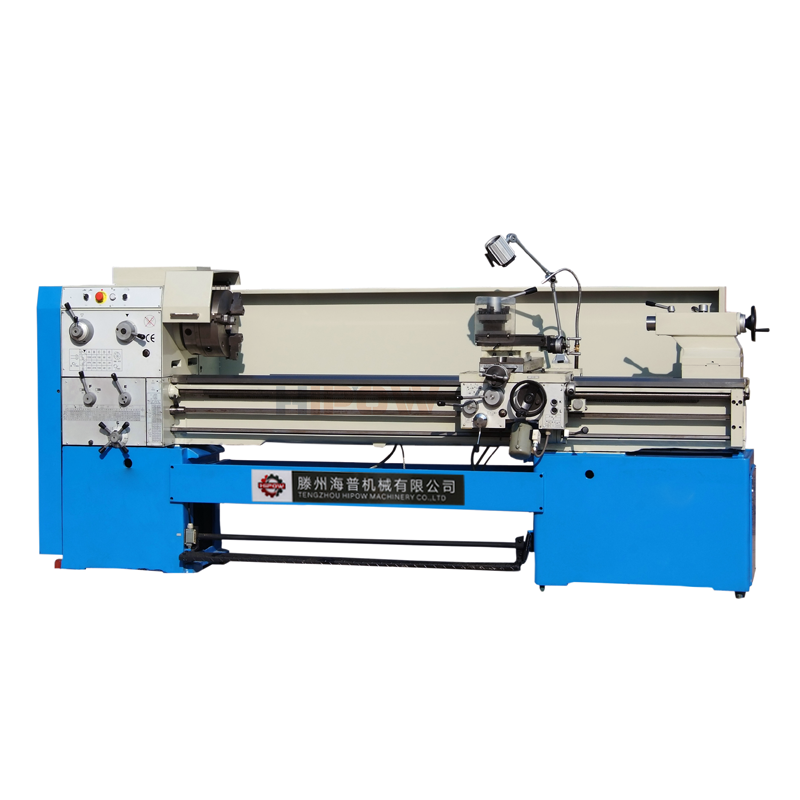

CAPACITY

Max.swing over bed

-

500mm

600mm

660mm

Max.swing over cross slide

-

325mm

360mm

420mm

Max.swing over gap

-

630mm

730mm

790mm

Effective length of gap

260mm

Center Distance

1500\2000\3000mm

Bed Width

330mm


  HEADSTOCK

Spindle hole

103mm

Spindle nose

ISO-D11

Spindle taper

Metric 115mm

Spindle speed(Number)

(15steps)20-1200rpm

FEEDS

Longitudinal feeds range

66kinds 0.072-4.038mm/rev

Cross feeds range

66kinds 0.036-2.019mm/rev

Metric threads range

66kinds 0.5-28mm

Inch threads range

66kinds 1-56inch

Moudle threads range

33kinds 0.5-3.5mπ

Diametral threads range

33kinds 8-56D.P

CARRIAGE

Max.travel of top slide

130mm

Max.travel of cross slide

300mm

Max.size of toolshank

25*25m²

TAILSTOCK

Dia.of tailstock sleeve

65mm

Taper of tailstock sleeve

MT5

Max.travel of tailstock

120mm

MOTOR

Main drive motor

5.5KW

7.5KW

Rapid traverse motor

250W

Coolant pump motor

125W

PACKING
  L*W*H

Center Distance(1000mm)

245*115*175cm

Center Distance(1500mm)

295*115*175cm

Center Distance(2000mm)

345*115*175cm

Center Distance(3000mm)

445*115*175cm

N.W/G.W

Center Distance(1000mm)

1600/2000kg

1650/2050kg

1750/2150kg

1850/2250kg

Center Distance(1500mm)

1800/2200kg

1850/2250kg

1950/2350kg

2050/2450kg

Center Distance(2000mm)

1950/2350kg

2000/2400kg

2100/2500kg

2200/2600kg

Center Distance(3000mm)

2100/2500kg

2150/2550kg

2250/2650kg

2350/2750kg
