XH7140 Vertical Machining Center
Item Number：
Machine Condition： NEW
Machine in stock： 1
Delivery time： 30-40 Days
Payment terms： T/T
Warranty：
Afer Sales Service：
Product introduction

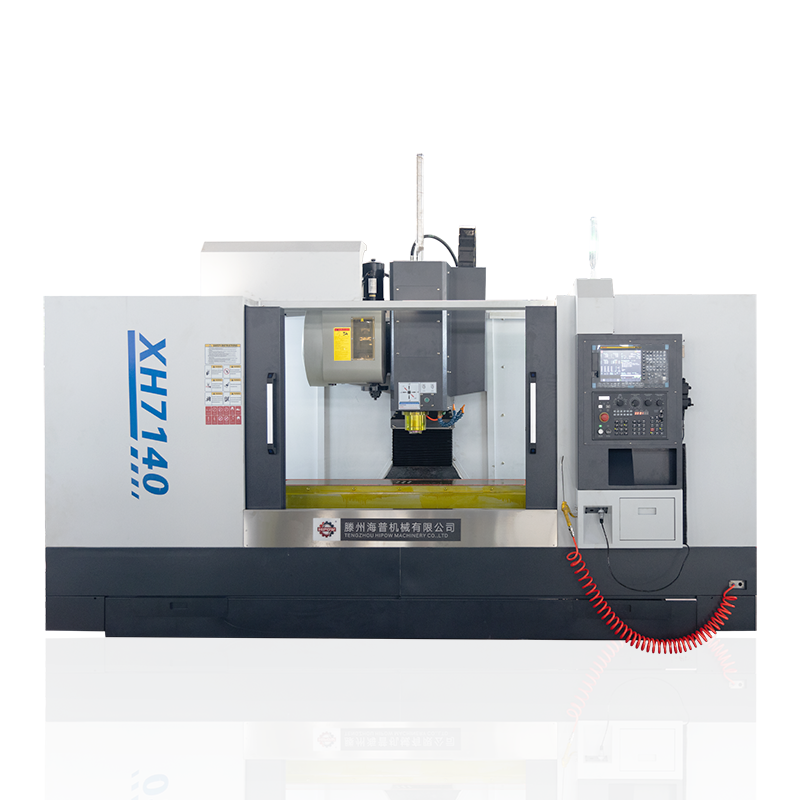

XH7140 Vertical Machining Center
Main Feature
★Aseismatic capability, high strength and good quality cast iron
★Top reliable CNC controller: Fanuc ,Mitsubishi ,Siemens Syntec and GSK
★X,Y,Z Axis CNC servo motor ,servo driver
★High Precision,High Rigidity Hard Rails
★Taiwan brand,8K,10K,12k spindle unit
★Taiwan OKADA umbrella/Arm type tool magazine
★Japanese NSK bearing ,Germany R+W coupling
★Japan HERG full automatic lubrication system
★Taiwan pressure cylinder,and pneumatic system
Item | XH7140 |
Table size | 1700x400mm |
X/Y/Z axis travel | 1300x400x500mm |
Spindle motor | 7.5kw servo motor |
From spindle center to column surface | 520mm |
Distance from spindle to table | 100-600mm |
Spindle speed | 8000rpm |
Spindle taper | BT40 |
Tool Magainze | 16T |
Tool Magainze Type | Arm |
Rapid speed of X/Y/Z axis | 8m/min |
X/Y/Z way motor torque | X/Y/Z way motor torque |
Position precision | 0.015/300mm |
Repetable Position precision | 0.01/100mm |
T-slot | 3/18/110 |
Max. load on table | 700kgs |
Machine dimension | 2600x2200x2300 |
Gross Weight | 3500KG |
High Precision XYZ Axis Ball Screw

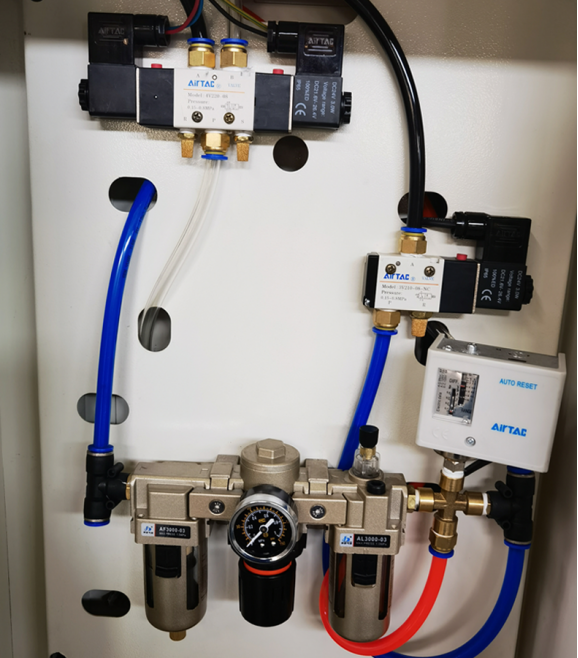

Taiwan Air TAG Pneumatic System

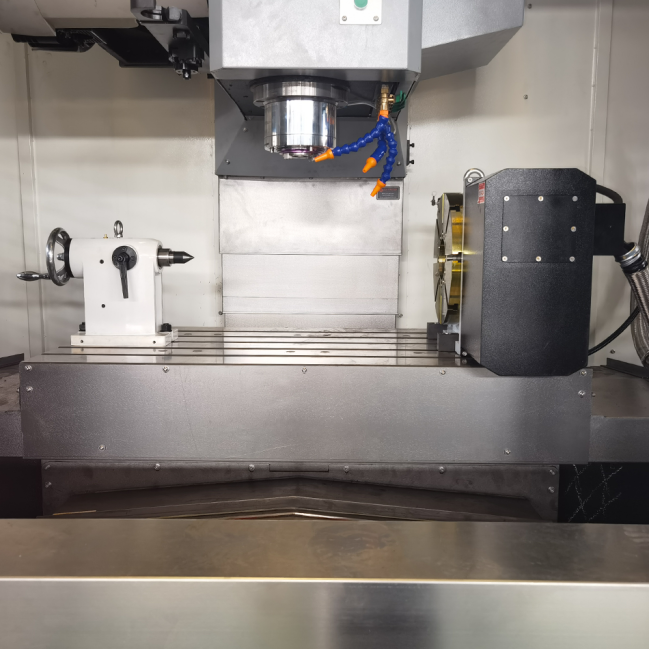

4TH Axis( CNC Rotary Table)
+GTR200 CNC Rotary Table+ Manual Tailstock+Manual Chuck
++GSK/Siemens/Fanuc Original Servo motor, Servo Driver
Direct-Drive BT40 12000rpm Spindle
Q1. How can l get a quotation?
A. Leave us massage with your purchase requements and we will reply
you ASAP. And you may contact us directly by Trade Manager or Telephone.
Q2. Can you provide customized machine or SPM (Special purposemachine)?
A. Yes, we provide smart CNC solutions for our customer, in order increase efficiency.
Q3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.
Q4. How about your price?
A. Send me details about what you need, you will get the best
price in China. The price is competitive over the world.
Q5.What's the delivery time, and what's the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines
packed with sea worthy package.
