XK5032 CNC Milling Machine
Item Number： HP-NC-0151
Machine Condition： NEW
Machine in stock： 4
Delivery time： 15-35 Days
Payment terms： T/T
Warranty： 1 Year
Afer Sales Service：
Product introduction
XK5032 CNC Milling Machine
Main Feature
1、Aseismatic capability, high strength and good quality cast iron
2、Top reliable CNC controller: Fanuc,Mitsubishi ,Siemens,Syntec and GSK
3、X,Y,Z Axis CNC servo motor ,servo driver
4、Heavy duty gear lSO 50 gear -box spindle
5、Japanese NSK bearing ,Germany R+W coupling
6、Japan HERG full automatic lubrication system
Item | XK5032 |
Spindle Taper | IS0 50 |
Worktable Size(mm) | 1500X320 |
MAX Automatic Worktable Travel (L/H/V)(mm) | 900/290/350 |
Worktable T-Slot (nunmber/width/distance)(mm) | 3/14/70 |
Swivel Angle of Milling Head | ±45 |
Spindle to Worktable(mm) | 350 |
Spindle SpeedRange(r.p.m) | 30-1500(18steps) |
Spindel Sleeve Travel(mm) | 105 |
Max Load (kg) | 500 |
Range of Table Feed (XY/Z)(mm/min) | 6-3200/3-1600 |
Speed of Table Rapid Traveling (L,H/V)(m/min) | 6/6/3 |
Controlling System | GSK980MDI |
Main Motor(kw) | 7.5 |
X/Y/Z axis torque | 10/10/18N.m |
Coolant Pump Motor(w) | 125 |
Overall Dimension(mm) | 2294x1770x1665 |
AC Power input (V/Hz) | 380V50HZ |
N.W/G.W | 2650Kg/3000Kg |
TAIWAN High PrecisionSpindle Unit
1)Taiwan High Speed, Stable Perfomance
2)8000,10000,12000,18000rpm,20000rpm speed available
3)BT40,BT50 ,HSKA Spindle Taperfreely choosen
Top brand reliable CNC controller
1.Fanuc ,Mitsubishi ,Siemens,Syntech and GSK are avaiable
2. Top cnc controller with original CNC servo motor ,servo driver,
original controller panel

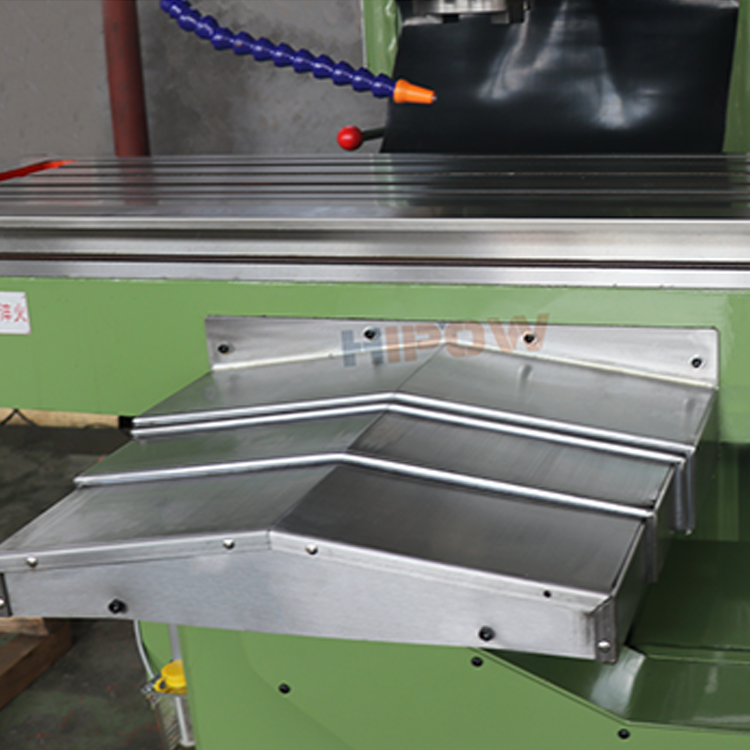

High Quality machine body and worktable
1)The machine`s worktable is 1500x320mm
2)The Manual X/Y/Z travel is 900/290/350mm
High Rigidity ,higprecision ,rectangle hard rails
with plasticlayer surface coating
7.5Kw Heavy duty,High Speed Motor
Q1. How can l get a quotation?
A. Leave us massage with your purchase requements and we will reply
you ASAP. And you may contact us directly by Trade Manager or Telephone.
Q2. Can you provide customized machine or SPM (Special purposemachine)?
A. Yes, we provide smart CNC solutions for our customer, in order increase efficiency.
Q3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.
Q4. How about your price?
A. Send me details about what you need, you will get the best
price in China. The price is competitive over the world.
Q5.What's the delivery time, and what's the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines
packed with sea worthy package.
