XK7124 Vertical Machining Center
Item Number： HP-NC-0027
Machine Condition： NEW
Machine in stock： 1
Delivery time： 35 Days
Payment terms： T/T
Warranty： 1 Year
Afer Sales Service： Online support, Video technical support, Free spare parts
Product introduction
XK7124 Vertical Machining Center
Main Feature
1.Aseismatic capability, high strength and good quality cast iron.
2.Top reliable CNC controller: Fanuc ,Mitsubishi ,Siemens
Syntech and GSK
3.Taiwan HlWN high precision linear rails, HIWIN ball screw
4. Taiwan brand,8K,10K,12k spindle unit
5.Taiwan OKADA umbrella/Arm type tool magazine
6.Japanese NSK bearing ,Germany R+W coupling
7. Japan HERG full automatic lubrication system
8.Taiwan pressure cylinder,and pneumatic system.
SPECIFICATION | XK7124 |
X axis Travel | 500mm |
Y axis Travel | 300mm |
Z axis Travel | 400mm |
Tool storage capacity | 12T |
The spindle nose to mesa | 90-520mm |
Spindle center to post | 360mm |
Table size | 800 × 260mm |
T slot (size X number X spacing) | 14×3× 80mm |
The workbench maximum load | 400kg |
The spindle taper | BT40 |
The standard spindle type | 6000rmp |
Spindle power | 3.7kw |
Cutting speed | 1-6000mm/min |
Fast speed | X/Y/Z:10m/min |
Positioning accuracy | ±0.01/300mm |
Machine tool gross weight | 1800kg |
Max.Tool length | 300 |
Max.Tool weight | 7.5 |
Electricitty supply required | 25 |
Air pressure required | 5-7 |
Positioning accuracy | ±0.005 |
reposttioning accuracy | ±0.003 |
Machine dimensions(LxWxH) | 280x225x256 |
Machine weight(N.w/G.w) | 6.0/6.4 |
TAIWAN High RigidityAutomatic Top QualityCNC Tool Magazine
1.Taiwan OKADA BT40,16TFunnel type tool magazine
2. Taiwan OKADA BT40,16T Armtype tool magazine can bechoosen
TAIWAN High Precision Spindle Unit
1)Taiwan High Speed, StablePerfomance
2)8000,10000,12000,18000mpm,20000rpm speed available
3)BT40,BT50 ,HSKA Spindle Taperfreely choosen
Top brand reliable CNCcontroller
1.Fanuc ,Mitsubishi ,SiemensSyntech and GSK are avaiable
2. Top cnc controller with originalCNC servo motor ,servo driver .
original controller panel
Taiwan HIWIN highprecision linear rails,ithas perfect
self-aligningcapability , good Inter-changeability ,and
highrigidity in all fourdirections

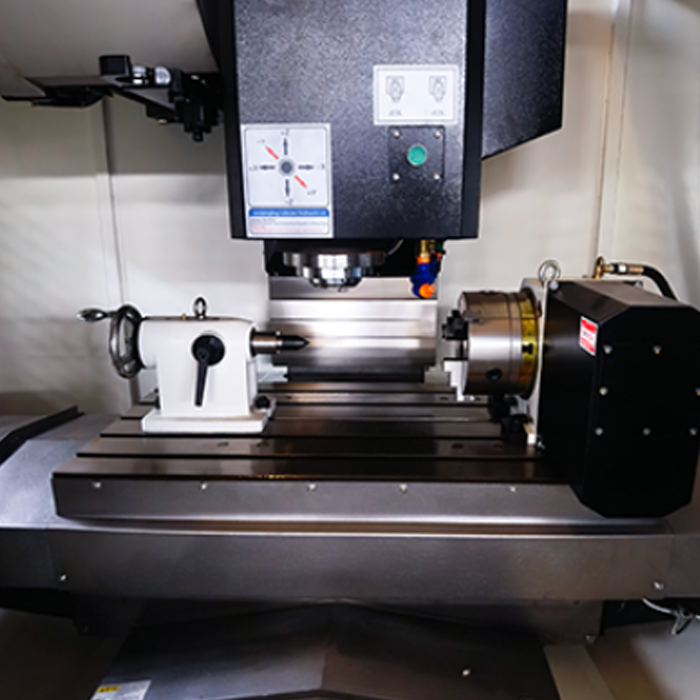

4TH CNC Axis
+170mm CNC RotarTable
+Manual chuck
+Round Tailstock
+CNC servo motor
+CNC servo driver
Renishaw OMP40,OMP60 Compact 3D
toch-trigger probero-ptical signal transmiss-
ion.
Q1. How can l get a quotation?
A. Leave us massage with your purchase requements and we will reply
you ASAP. And you may contact us directly by Trade Manager or Teleph-one.
Q2. Can you provide customized machine or SPM (Special purpose
machine)?
A. Yes, we provide smart CNC solutions for our customer, in order increa-
se efficiency.
Q3. Can you provide training for operation CNc machines?
A. Yes, free training in our factory is available.
Q4. How about your price?
A. Send me details about what you need, you will get the best
price in China. The price is competitive over the world.
Q5.What's the delivery time, and what's the package?
A.Normally the delivery time is about 30-45 days. All our CNC machines
packed with sea worthy package.
